AC/DC Current Sensor
This product is available in 5-7 weeks
Delivering Wide-Operating Temperature Range and High-precision Current Measurement

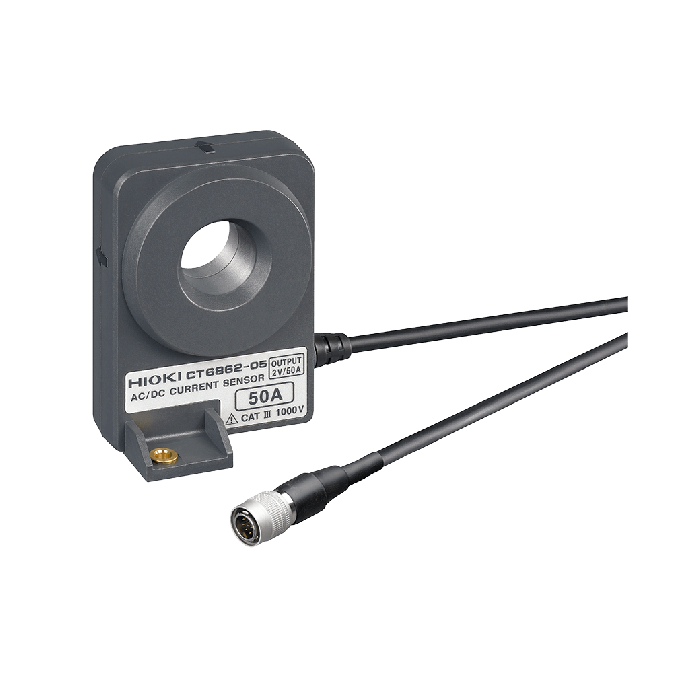

Hioki pass-through AC/DC current sensors are best-in-class devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT6862 is a DC to 1 MHz/50 A sensor, and this is ideal for capturing current signals from switching power supplies, inverters, power conditioners, etc.
CAT III 1000 V
Use with an instrument with a high input impedance of 1 MΩ or higher
Key Features
- Combined accuracy with HIOKI power analyzer PW8001, PW6001 and PW3390 is specified. For details of combined accuracy, refer to the instruction manual.
- Wide-bandwidth DC to 10 MHz excellent frequency characteristics
- Applications in the fields of electric and hybrid electric vehicles
- Wide operating temperature range(-40°C to 85°C) fit for automobile applications
- Ideal for evaluation of solar power generation and fuel cells to measure battery charge and discharge and the secondary side of inverters
- For observing waveforms to be used with the oscilloscopes or Memory HiCorders (use with Sensor Unit)
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£727.13
| Attribute | Value |
|---|---|
| Power Supply | Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977 |
| Included Accessories | Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1 |
| Max Allowable Input | Within the derating range, up to ±150 A peak (design value) allowed at 40°C or less for 20 ms or less |
| Dimensions and Weight | 70 mm (2.76 in)W × 100 mm (3.94 in)H × 53 mm (2.09 in)D, CT6872: 370 g (13.1 oz), cable length: 3 m (9.84 ft), CT6872-01: 690g (24.3 oz), cable length 10 m (32.81 ft) |
| Basic Accuracy | DC (±0.03% rdg. ±0.002% f.s., no phase specification) |
| Rated Current | 50 A AC/DC |
| Frequency Bandwidth | Amplitude: DC to 10 MHz Phase: DC to 1 MHz |
| Output Voltage Rate | 40 mV/A rated (This device outputs AC+DC voltage via the Sensor Unit) |
| Core Diameter | φ 24 mm (0.94 in) |
| Operating Temperature and Humidity | -40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation) |
| Max. Rated Power | 4 VA max. (at 50 A/55 Hz, ±12 V power requirement) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
