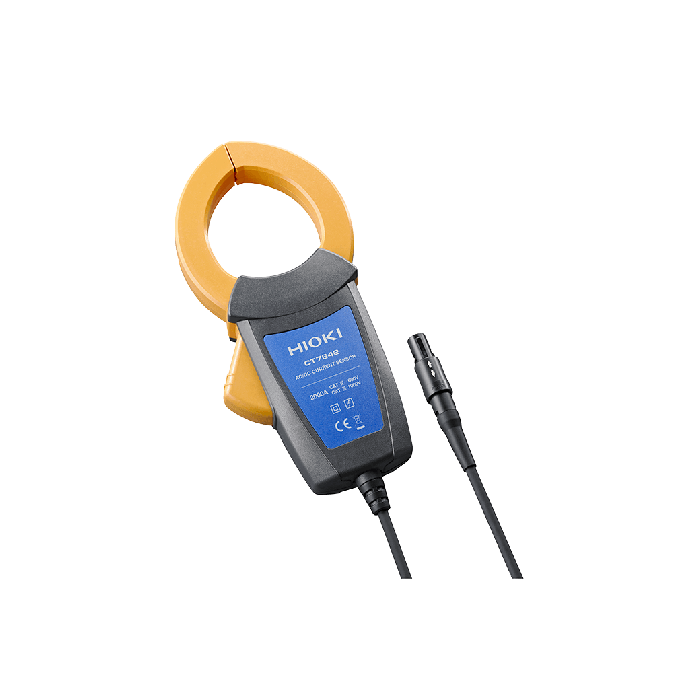

CT7642
CT7642
Hioki
Current Sensor
This product is available in 5-7 weeks
Accurate, Long-term Recording and Easy Output Settings
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7631 is a 100 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 to capture instantaneous waveforms that can be output to a Hioki memory recorder or logger for further analysis. Mix and match with other sensors in the series for a cost-effective solution covering a broad measurement range.
CAT IV 600 V
Key Features
-
- Ideal for observing instantaneous waveforms in laboratories and other temperature-controlled environments
- Ideal for site inspections by using detachable Display Unit
- Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
Buy Online
| Attribute | Value |
|---|---|
| Included Accessories | None |
| Max Allowable Input | 2000 A(requires derating at frequency)) |
| Dimensions and Weight | 64 mm (2.52 in)W × 195 mm (7.68 in)H × 34 mm (1.34 in)D, 510 g (18.0 oz), Cable length 2.5 m (8.20 ft) |
| Basic Accuracy | ±2.3 deg. (DC < f ≤ 66 Hz) |
| Rated Current | 2000 A AC/DC |
| Frequency Bandwidth | DC to 10 kHz (-3dB) (When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz) |
| Core Diameter | φ 55 mm (2.17 in) or less |
| Operating Temperature and Humidity | -25°C to 65°C (-13°F to 149°F) |
| Output Connectors | HIOKI PL 14 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
