Hioki

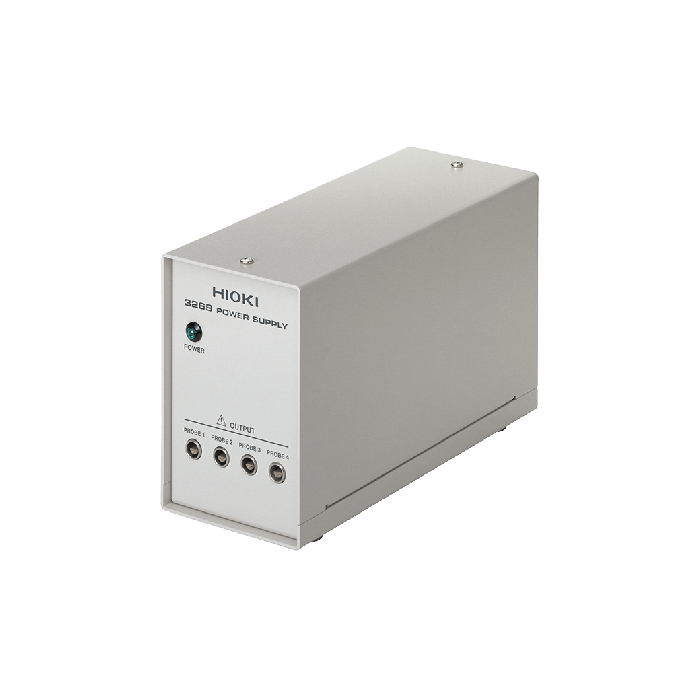

Power Supply 3269 - Power Supply Unit for Outputting Current Probe Signals to Memory HiCorders and Oscilloscopes

main product photo
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3269 is a 4 channel power supply for outputting signals measured by the 3270 Series AC/DC Clamp On Probe to the data acquisition equipment.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Power supply for the Clamp on probe 3273-50 - 3276, CT6700 and CT610 series
  • Supplies power when connected to a general-purpose instrument such as a recorder
Basic Specifications
Compatible sensors The CT6710, CT6711: up to 2 units
The CT6700, CT6701, 3273-50, 3274, 3275 or 3276: up to 4 units
Note: Also up to 4 units for the discontinued Model 3273
Number of power supply connectors 4
Output ±12 V ±0.5 V, ±2.5 A
(sum total of all channels)
Power supply 100 V to 240 V AC (free) 50/60 Hz 170 VA max.
Dimensions and mass 80 mm (3.15 in)W × 119 mm (4.69 in)H × 200 mm (7.87 in)D, 1.1 kg (38.8 oz)
Accessories Instruction manual ×1, Power cord ×1
Accessory Type Power Supply
Notes These products cannot be used alone. To measure current, a compatible current sensor is required.
More Information
Attribute Value
Data Sheet Click here to view
