Hioki 9657-10 Leak Sensor | APC Technology Group

9657-10

9657-10

Hioki

Leak Sensor

This product is available in 5-7 weeks

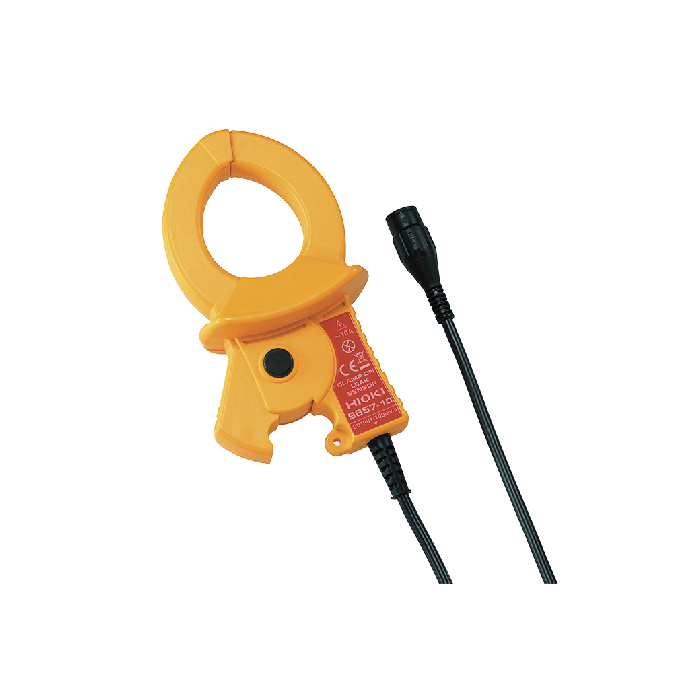

Voltage Output Sensor for Leak Current Measurements

Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9657-10 is a voltage output clamp sensor for measuring leak current. The high-permeability magnetic material of the sensor’s core and magnetic shield enables high-precision measurement of very weak currents.

Key Features

  • For general purpose leak current testing
  • Also supports load current testing
  • Check for insulation faults
Contact our expert team

We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.



Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.

Price £259.82
More Information
Attribute Value
Included Accessories Instruction manual ×1
Max Allowable Input Max. 30 A of continuous input
Dimensions and Weight 74 mm (2.91 in)W × 145 mm (5.71 in)H × 42 mm (1.65 in)D, 380 g (13.4 oz), Cord length: 3 m (9.84 ft)
Basic Accuracy ±1.0 % rdg. ±0.05 % f.s. ±3 ° (at 50 Hz or 60 Hz)
Rated Current AC 10 A (for leak current measurement, 50/60 Hz)
Frequency Bandwidth 40 Hz to 5 kHz: ± 3% (Add to amplitude accuracy
Output Voltage Rate AC 100 mV/A
Core Diameter φ 40 mm (1.57 in)
More Information
Attribute Value
Data Sheet Click here to view

Related Products

  1. CT6875A
  2. PW9100A

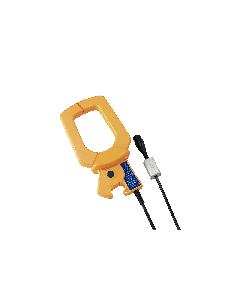

  3. 9669
