Hioki

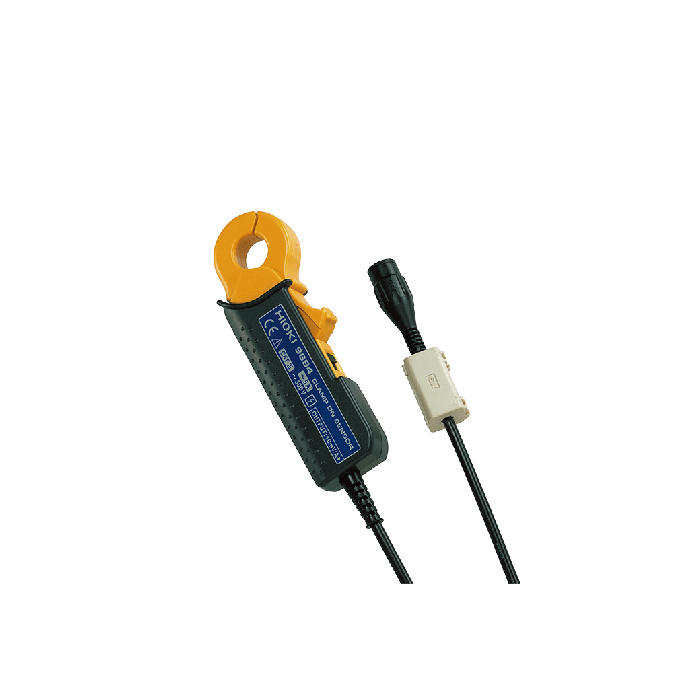

Clamp on Sensor
For measuring load current, voltage output sensor 5 A AC
Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9694 is a 5A AC clamp sensor with voltage output for measuring load current.
CAT III 300V
Key Features
- For inverter devices or commercial power lines
- For measuring the secondary side of 5A CTs
- Fits in narrow spaces due to compact design
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Max Allowable Input | Continuous 50 A (45 to 66 Hz) |
| Dimensions and Weight | 46 mm (1.81 in)W × 135 mm (5.31 in)H × 21 mm (0.83 in)D, 230 g (8.1 oz) Cord length 3 m (9.84 ft), Output terminal: BNC |
| Basic Accuracy | ±2° (45 Hz to 5 kHz) ±0.3 % rdg. ±0.02 % f.s. |
| Rated Current | 5A AC |
| Frequency Bandwidth | Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy) |
| Output Voltage Rate | 10 mV AC/ A |
| Core Diameter | φ 15 mm (0.59 in) or less |
| Operating Temperature and Humidity | 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation) |
