Hioki

Clamp On Probe 9018-50 - Simply Connect to a Tester or Recorder to Easily Measure Large Currents

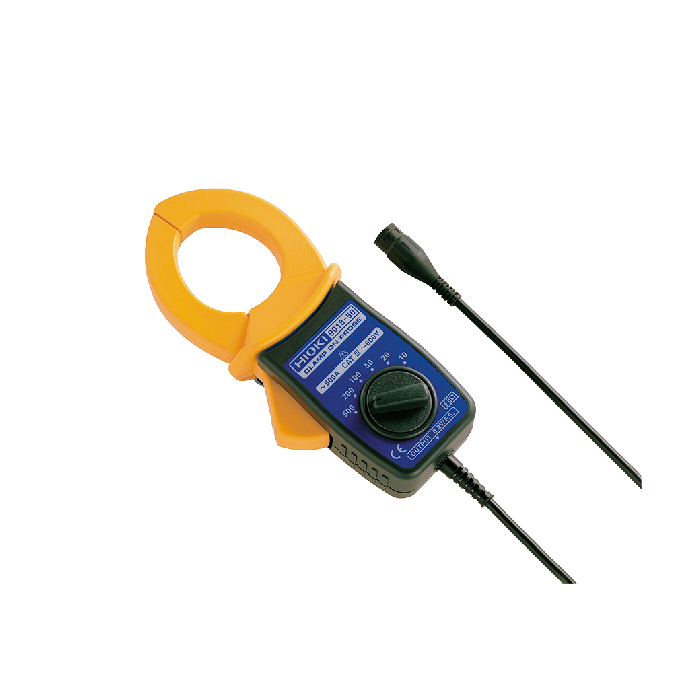

main product photo
Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9018-50 is a multi-range 500 A AC voltage output clamp sensor with superior phase characteristics for capturing waveforms with DMMs and Memory HiCorders. Measure AC current on live power lines without needing to cut the wire.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Choose from six general-purpose ranges
  • Accurately record and analyze waveforms and harmonic signals
Basic Specifications
Rated current 10 A to 500 A AC, 6 ranges
Accuracy ±1.5% rdg. ±0.1% f.s. (45 to 66 Hz)
Frequency characteristics Add to amplitude accuracy : ± 1% rdg.
Add to phase accuracy : ± 2.5° for frequencies from 40 Hz to 3 kHz
Output rate 0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)
Max. allowable input 150 A rms continuous (10/20/50 A ranges)
400 A rms continuous (100/200 A ranges)
650 A rms continuous (500 A range)
(For 40 Hz to 100 Hz: 100 %, and for 100 Hz to 1 kHz: within 50 % of derating)
Max. rated voltage to earth 600 V rms (50 Hz/60 Hz, CAT III)
Core diameter φ46 mm (1.81 in)
Dimensions and mass 78 mm (3.07 in) W × 188 mm (7.40 in) H × 35 mm (1.38 in) D, 420 g (14.8 oz), cord length: 3 m (9.84 ft)
Accessories Instruction manual ×1
Accessory Type Probe
More Information
Attribute Value
Data Sheet Click here to view
