Hioki

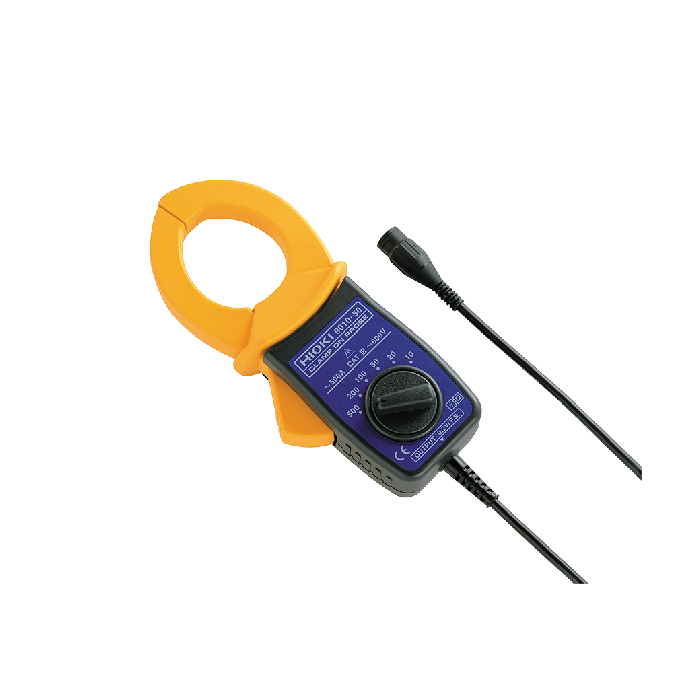

Clamp On Probe 9010-50 - Simply Connect to a Tester or Recorder to Easily Measure Large Currents

main product photo
Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9010-50 is a multi-range 500A AC voltage output clamp sensor for capturing waveforms with DMMs. Measure AC current on live power lines without needing to cut the wire. CAT III 600 V
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • Economical clamp sensors for waveform recording with Memory HiCorders
  • Choose from up to six general-purpose ranges
Basic Specifications
Rated current 10 A to 500 A AC, 6 ranges
Accuracy ±2 % rdg. ±1 % f.s. (45 to 66 Hz)
Frequency characteristics Add to amplitude accuracy for frequencies from 40 to 1 kHz: ± 6 % rdg. (at 10 A and 20 A range)
± 3 % rdg. (for 50 A range and above)
Output rate 0.2 V AC f.s. (f.s. = setting rage)
(Connect to a voltage input device providing a high input impedance of 1 MΩ)
Max. allowable input 150 A rms continuous (10/20/50 A ranges)
400 A rms continuous (100/200 A ranges)
650 A rms continuous (500 A range)
(For 40 Hz to 100 Hz: 100 %, and for 100 Hz to 1 kHz: within 50 % of derating)
Max. rated voltage to earth 600 Vrms (50/60 Hz, CAT III)
Core diameter φ46 mm (1.81 in)
Dimensions and mass 78 mm (3.07 in)W × 188 mm (7.40 in)H × 35 mm (1.38 in)D, 420 g (14.8 oz), cord length: 3 m (9.84 ft)
Accessories Instruction manual ×1
Accessory Type Probe
More Information
Attribute Value
Data Sheet Click here to view
