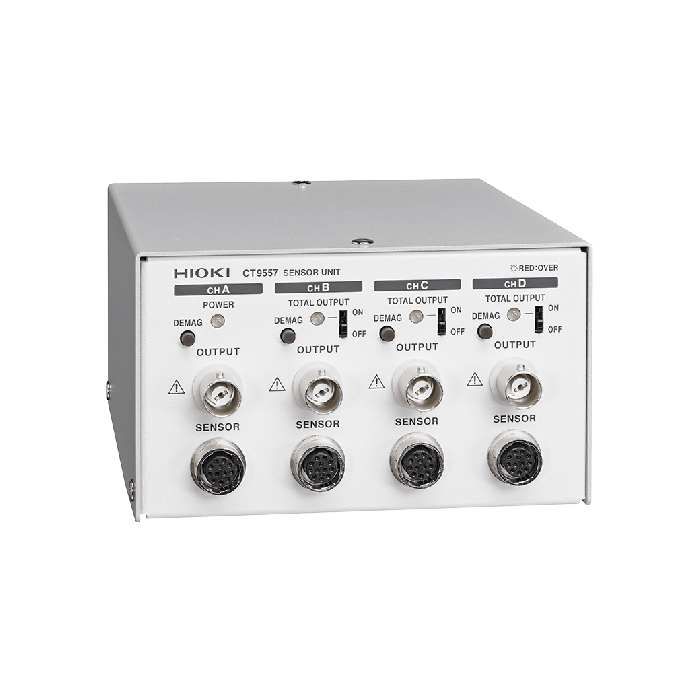

CT9557
CT9557
Hioki
Sensor Unit
This product is available in 5-7 weeks
Aggregate and measure large currents in multi-cable circuits
Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT9557 is 4-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform and RMS output
Key Features
- Power supply for high-precision current sensors with waveform output functionality
- Output a single waveform from an aggregate of input waveforms
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£1,437.44
| Attribute | Value |
|---|---|
| Power Supply | AC Adapter Z1002 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 155 VA) External power supply (10 to 30 V DC; maximum rated power: 60 VA) |
| Included Accessories | AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1 |
| Dimensions and Weight | 116 mm (4.57 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts),420 g (14.8 oz) |
| Rated Current | Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) |
| Offset Voltage | 50 Ω |
| Output Voltage Rate | Waveform output/ Total waveform output: 2 V f.s. Total RMS output: 2 V DC f.s. Waveform output (4CH), total waveform output and total RMS output can be used simultaneously |
| Operating Temperature and Humidity | -10 °C to 50 °C (14 °F to 122 °F) |
| Output Cable Length | BNC Terminal |
| Connectable Current Sensors | Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) *The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
