Hioki

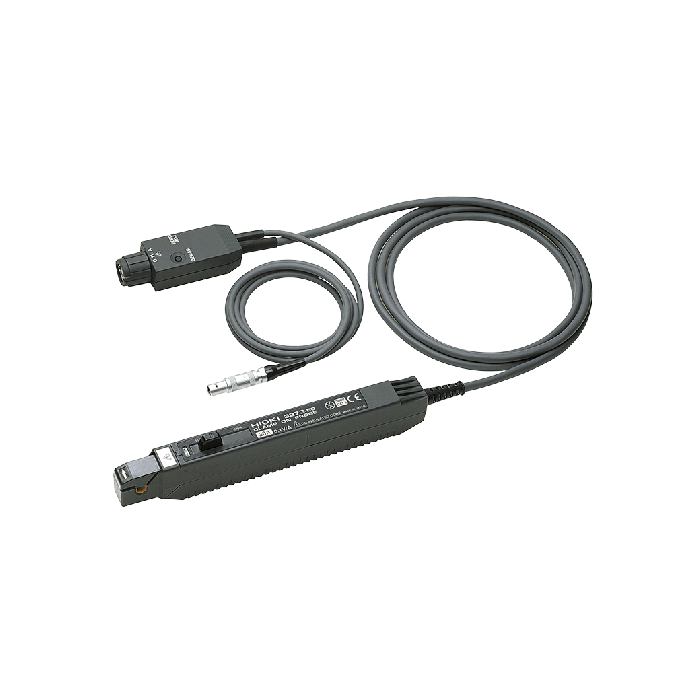

Clamp on Probe
This product is available in 5-7 weeks
High S/N characteristics enable the measurement of 10 mA order current waveforms. Wideband Current Probe for Oscilloscopes
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3273-50 offers a wide DC to 50 MHz bandwidth and 30A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers.
The probe is designed with a high permeability magnetic shield to reduce the effects of electric fields, making it ideal for measuring low currents or nearby high-current lines.
Use with an instrument with a high input impedance of 1 MΩ or higher.
Key Features
- Waveform observation across a wide band from DC to 50 MHz
- Connects directly to oscilloscope or Memory HiCorder BNC input terminal (*1)
- High S/N characteristics enable the measurement of 10 mA order current waveforms (3273-50, 3276)
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | ±12 V ±0.5 V, 5.6 VA max. |
| Included Accessories | Instruction manual ×1, Soft case × 1 |
| Max Allowable Input | 30 A rms (requires derating at frequency)eak (non continuous) 500 A peak (pulse width: 30 μs or shorter) |
| Dimensions and Weight | Sensor: Approx. 175 mm (6.89 in.) W × 18 mm (0.71 in.) H × 40 mm (1.57 in.) D, 230 g (8.1 oz.) (excluding protrusions) Sensor cable: 1.5 m (4.92 ft.), BNC terminal, Power cable: 1 m (3.28 ft.) |
| Basic Accuracy | ±1.0 % rdg. ±1 mV f.s. (DC, 45 to 66 Hz, 0 to 30 A rms) ±2 % rdg. (DC, 45 to 66 Hz, 30 A rms to 50 A peak) |
| Frequency Bandwidth | DC to 50 MHz (-3 dB) |
| Output Voltage Rate | 0.1 V/A (The output of this probe is internally terminated) |
| Core Diameter | φ 5 mm (0.20 in) |
| Rise Time | 7 ns or shorter |
| Noise Level | 2.5 mA rms max. (bandwidth limited to 20 MHz) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
