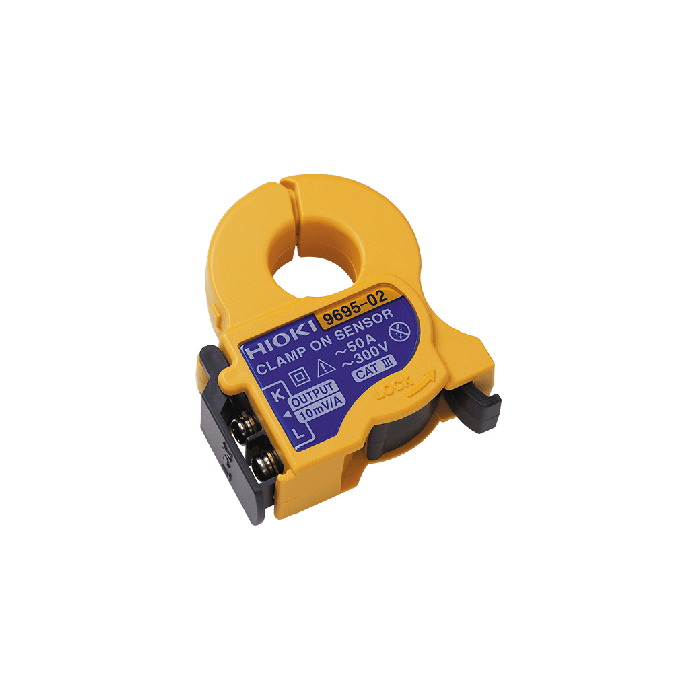

Hioki 9695-02 Clamp On Sensor | APC Technology Group

9695-02

9695-02

Hioki

Clamp on Sensor

For measuring load current, voltage output sensor 50 A AC

Hioki current sensors are best-in-class devices for use with power meters, and PQAs. The 9695-02 is a 50 A AC clamp sensor with voltage output for measuring load current.
CAT III 300 V

Key Features

  • High ±0.3% accuracy
  • For inverter devices or commercial power lines
  • For power meters and power loggers (may require the 9219)
  • Fits in narrow spaces due to compact design
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Max Allowable Input Continuous 60 A (45 to 66 Hz)
Dimensions and Weight 50.5 mm (1.99 in)W × 58 mm (2.28 in)H × 18.7 mm (0.74 in)D, 50 g (1.8 oz) Output terminal : M3 terminal (outside 3 mm, 0.12 inch diameter) Option: Connection cable 9219 (3 m, 9.84 ft length)
Basic Accuracy ±0.3 % rdg. ±0.02 % f.s. (*1) ±2° (45 Hz to 5 kHz)
Rated Current 50 A AC
Frequency Bandwidth Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy)
Output Voltage Rate 10 mV AC/ A
Core Diameter φ 15 mm (0.59 in) or less
Operating Temperature and Humidity 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)
More Information
Attribute Value
Data Sheet Click here to view
