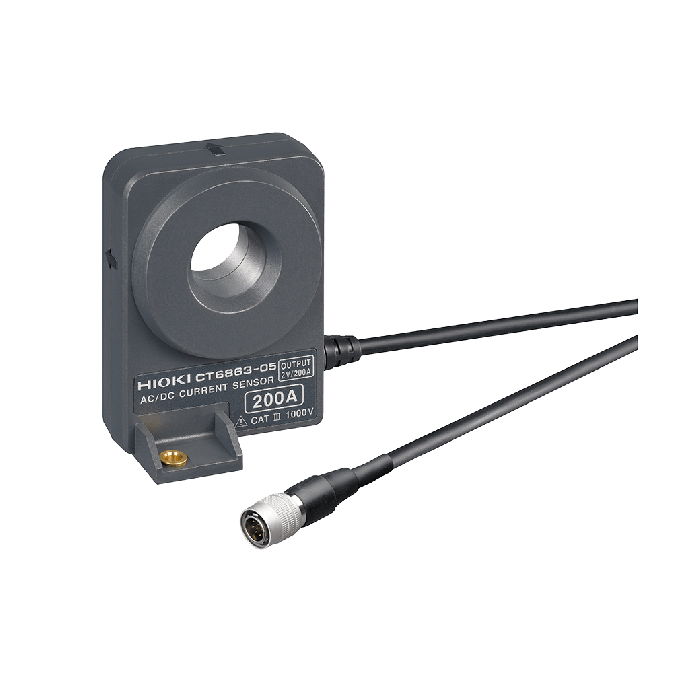

CT6863-05

CT6863-05

Hioki

AC/DC Current Sensor

This product is available in 5-7 weeks

Delivering Wide-Operating Temperature Range and High-precision Current Measurement

Hioki pass-through AC/DC current sensors are best-in-class devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT6863 is a DC to 500 kHz/200 A sensor, and this is ideal for capturing current signals from switching power supplies, inverters, power conditioners, etc.

CAT III 1000 V

Use with an instrument with a high input impedance of 1 MΩ or higher

Key Features

  • Super high precision
  • Wide-bandwidth DC to 500 kHz excellent frequency characteristics
  • Applications in the fields of electric and hybrid electric vehicles
  • Wide operating temperature range (-30°C to 85°C) fit for automobile applications
  • Ideal for evaluation of solar power generation and fuel cells to measure battery charge and discharge and the secondary side of inverters
  • For observing waveforms to be used with the oscilloscopes or Memory HiCorders (use with SENSOR UNIT)
In stock
£727.13
More Information
Attribute Value
Power Supply Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Included Accessories Instruction manual ×1, Mark bands ×6
Max Allowable Input 400 A rms (requires derating)
Dimensions and Weight 70 mm (2.76 in)W × 100 mm (3.94 in)H × 53 mm (2.09 in)D, 350 g (12.3 oz), cord length: 3 m (9.84 ft)
Basic Accuracy DC ±0.05 % rdg. ±0.01 % f.s. (Phase: Not defined) 16 Hz ≤ f ≤ 400 Hz ±0.05 % rdg. ±0.01 % f.s. (Phase: ±0.2°) Defined to 500 kHz
Rated Current 200 A AC/DC
Frequency Bandwidth Amplitude: DC to 500 kHz Phase: DC to 300 kHz
Output Voltage Rate 2 V /rated current value (This device outputs AC+DC voltage via the Sensor Unit)
Core Diameter φ 24 mm (0.94 in)
Operating Temperature and Humidity -30°C to +85°C (-22°F to 185°F), 80% RH or less (with no condensation)
Max. Rated Power 6 VA max. (at 200 A/55 Hz, ±12 V power requirement)
More Information
Attribute Value
Data Sheet Click here to view
