Hioki CT7636 Current Sensor | APC Technology Group

CT7636

CT7636

Hioki

Current Sensor

This product is available in 5-7 weeks

Accurate, Long-term Recording and Easy Output Settings

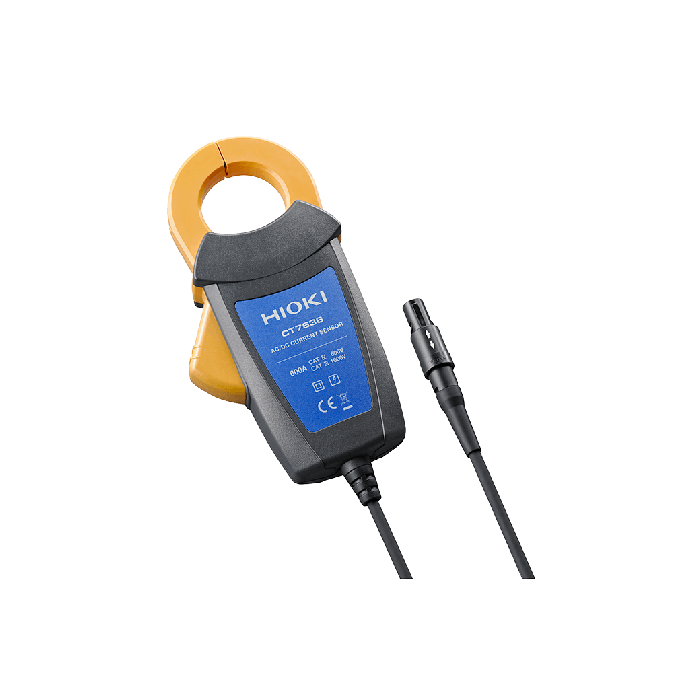

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7636 is a 600 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 to capture instantaneous waveforms that can be output to a Hioki memory recorder or logger for further analysis.

CAT IV 600 V

Key Features

  • Ideal for observing instantaneous waveforms in laboratories and other temperature-controlled environments
  • Ideal for site inspections by using detachable Display Unit
  • Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
In stock
£353.08
More Information
Attribute Value
Included Accessories None
Max Allowable Input 900 A peak
Dimensions and Weight 64 mm (2.52 in)W × 160 mm (6.30 in)H × 34 mm (1.34 in)D, 320 g (11.3 oz), Cable length 2.5 m (8.20 ft)
Basic Accuracy ±1.8 deg. (DC < f ≤ 66 Hz)
Rated Current 600 A AC/DC
Frequency Bandwidth DC to 10 kHz (-3dB)(When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
Core Diameter φ 33 mm (1.30 in) or less
Operating Temperature and Humidity -25°C to 65°C (-13°F to 149°F)
Max. Rated Power 150 A peak
Output Connectors HIOKI PL 14
More Information
Attribute Value
Data Sheet Click here to view
