CT7631

CT7631

Hioki

Current Sensor

This product is available in 5-7 weeks

Accurate, Long-term Recording and Easy Output Settings

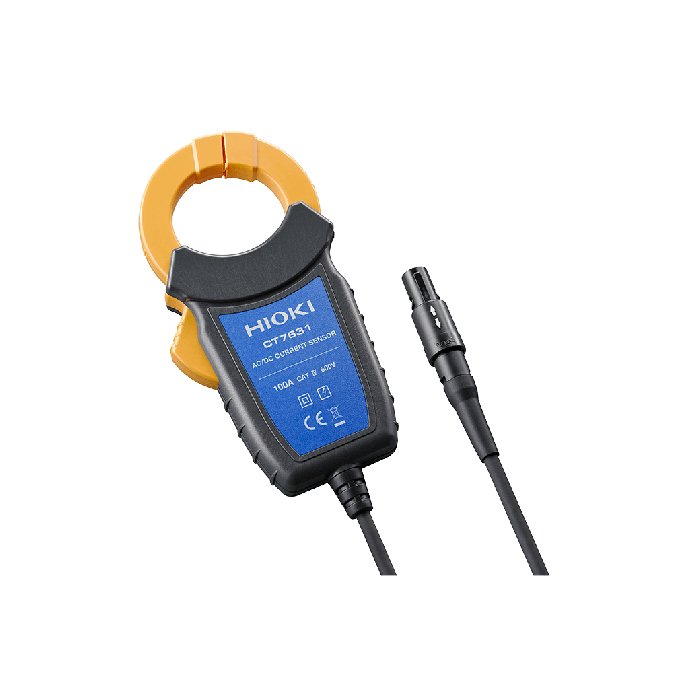

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7631 is a 100 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 to capture instantaneous waveforms that can be output to a Hioki memory recorder or logger for further analysis. Mix and match with other sensors in the series for a cost-effective solution covering a broad measurement range.

CAT IV 600 V

Key Features

  • Ideal for observing instantaneous waveforms in laboratories and other temperature-controlled environments
  • Ideal for site inspections by using detachable Display Unit
  • Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
Contact our expert team

We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.



Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.

Price £306.55
More Information
Attribute Value
Included Accessories None
Max Allowable Input 150 A peak
Dimensions and Weight 58 mm (2.28 in)W × 132 mm (5.20 in)H × 18mm (0.71 in)D, 250 g (8.8 oz), Cable length 2.5 m (8.20 ft)
Basic Accuracy ±1.8 deg (DC < f ≤ 66 Hz)
Rated Current 100 A AC/DC
Frequency Bandwidth DC to 10 kHz (-3dB)(When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
Core Diameter φ 33 mm (1.30 in) or less
Operating Temperature and Humidity -25°C to 65°C (-13°F to 149°F)
Max. Rated Power 150 A peak
Output Connectors HIOKI PL 14
More Information
Attribute Value
Data Sheet Click here to view
