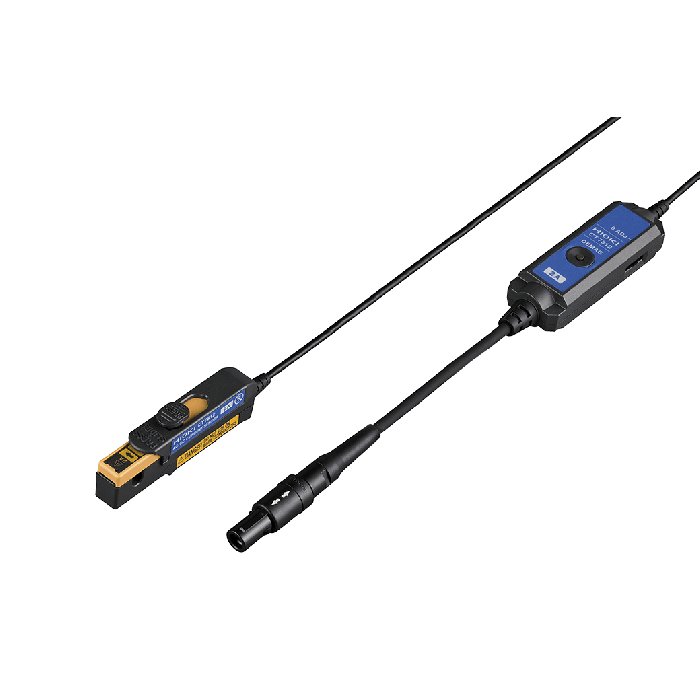

CT7812
CT7812
Hioki
AC/DC Current Probe
This product is available in 5-7 weeks
One of the industry’s smallest current sensors
Key Features
- Exceptional performance in a compact package
- Easy to install in confined locations with complex wiring
- Rated current: 2 A AC/DC
Buy Online
| Attribute | Value |
|---|---|
| Power Supply | HIOKI PL 14 |
| Included Accessories | Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
| Max Allowable Input | 3 A rms continuous (±4.3 Ap) |
| Dimensions and Weight | 140 g Sensor: 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable) Relay box: 80W × 20H × 26.5D mm (excluding protrusions and the cable) |
| Basic Accuracy | DC± 0.3％ rdg. ±0.1％ f.s. |
| Rated Current | 2 A AC/DC |
| Frequency Bandwidth | DC to 100 kHz |
| Core Diameter | φ 5 mm or less |
| Operating Temperature and Humidity | Sensor: -40°C to 85°C, 80% RH or less (non-condensing) Relay box: -25°C to 50°C, 80% RH or less (non-condensing) Sensor: 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable) Relay box: 80W × 20H × 26.5D mm (excluding protrusions and the cable) |
| Output Cable Length | 4 m (between sensor and relay box), 0.2 m (between relay box and output connector) |
| Output Connectors | HIOKI PL 14 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
