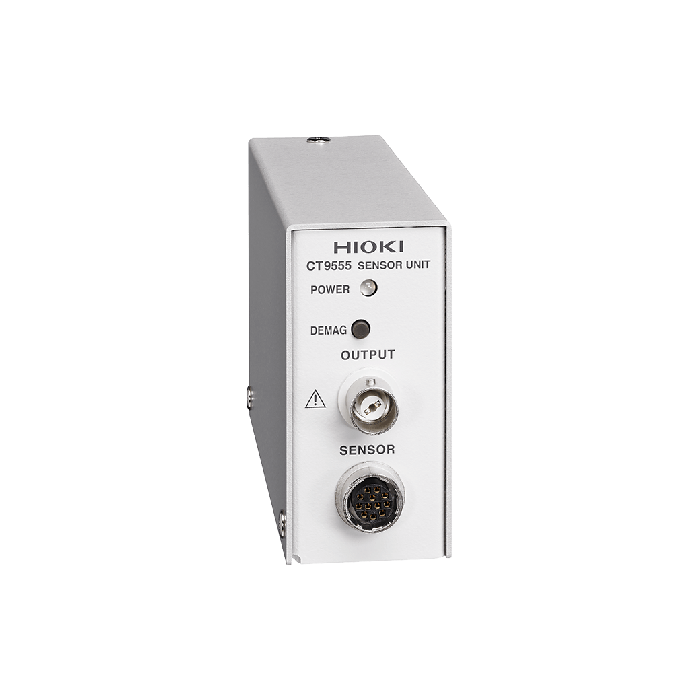

CT9555

CT9555

Hioki

Sensor Unit

Power supply for high-precision current sensors

Hioki pass-through current sensors and clamp on current probes are best-in-class current sensing devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT9555 is 1-channel sensor unit and power adapter for any of the CT686x series, 9709 and CT684x series current sensors and probes that provides waveform output.

Key Features

  • Power supply for high-precision current sensors with waveform output functionality
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA) External power supply (10 to 30 V DC; maximum rated power: 15 VA)
Included Accessories AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1
Dimensions and Weight 33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz)
Measurement Terminals BNC Terminal
Rated Current Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) *The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Offset Voltage 50 Ω
Output Voltage Rate Waveform output: 2 V f.s.
Operating Temperature and Humidity -10°C to 50°C (14°F to 122°F)
More Information
Attribute Value
Data Sheet Click here to view
