CT7742
CT7742
Hioki
Current Sensor
This product is available in 5-7 weeks
Accurate, Long-term Recording and Easy Output Settings

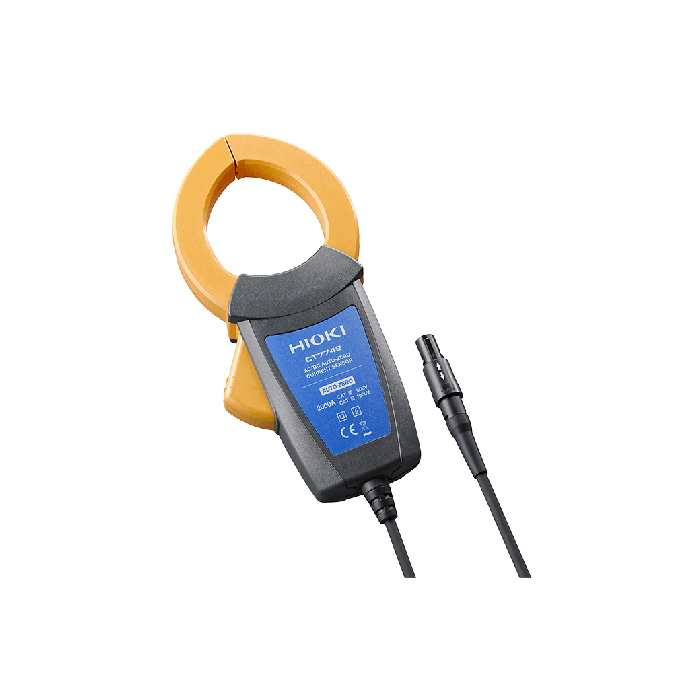

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7742 is a 2000 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 for convenient field testing, while delivering an extended temperature range and auto-zero adjustment to minimize drift due to wide temperature changes that occur during long-term testing. Further extend the functionality of this system by connecting the Display Unit with a Hioki memory recorder or logger.
CAT IV 600 V
Key Features
- Accurately measure and record even when the temperature changes
- Ideal for site inspections by using detachable Display Unit
- Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Included Accessories | None |
| Max Allowable Input | 2000 A 2840 A peak (requires derating at frequency) |
| Dimensions and Weight | 64 mm (2.52 in)W × 195 mm (7.68 in)H × 34 mm (1.34 in)D, 510 g (18.0 oz), Cable length 2.5 m (8.20 ft) |
| Rated Current | 2000 A AC/DC |
| Frequency Bandwidth | DC to 5 kHz (-3dB) (When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz) |
| Core Diameter | φ 55 mm (2.17 in) or less |
| Operating Temperature and Humidity | -25 °C to 65 °C (-13 °F to 149 °F) |
| Max. Rated Power | 150 A peak |
| Output Connectors | HIOKI PL 14 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
