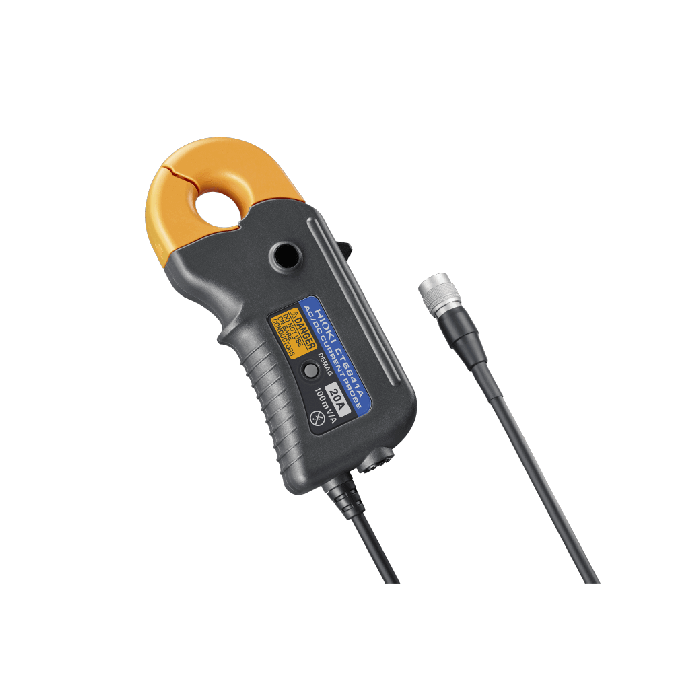

AC/DC Current Probe
This product is available in 5-7 weeks
High-precision Current Testing
Hioki's clamp type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders.
Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit.
Use with an instrument with a high input impedance of 1 MΩ or higher.
Key Features
- Frequency bandwidth DC to 2 MHz
- Rated current 20 A AC/DC
- Power supplied via the measurement instrument (when connecting Hioki Power Analyzer or Memory HiCorder)
- Ideal for use in environmental testing with broad -40°C to 85°C temperature range
- Ideal for EV inverter evaluation and PV power generation PCS evaluation
- Single-handed operation and robust locking mechanism
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£1,699.13
| Attribute | Value |
|---|---|
| Power Supply | Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977 |
| Included Accessories | Markup bands ×6, Carrying Case, Instruction Manual |
| Dimensions and Weight | Approx. 153 mm W × 67 mm H × 25 mm D (approx. 6.02 in. W × 2.64 in. H × 0.98 in. D), 370 g (13.1 oz.) |
| Rated Current | 20 A AC/DC |
| Frequency Bandwidth | DC to 2 MHz |
| Linearity | ±20 ppm Typical |
| Offset Voltage | 50 Ω ± 10 Ω |
| Output Voltage Rate | 100 mV/A |
| Core Diameter | Max. φ 20 mm (0.79 in.) |
| Operating Temperature and Humidity | -40°C to 85°C (-40°F to 185°F), 80% RH or less |
| Max. Rated Power | 5 VA or less (When measuring 20 A/55 Hz with ±12 V power supply) |
| Output Cable Length | Approx. 3 m (9.84 ft.) |
| Common-Mode Voltage Rejection Ratio (CMRR) | DC to 1 kHz：140 dB or greater 1 kHz to 10 kHz：125 dB or greater 10 kHz to 100 kHz：100 dB or greater 100 kHz to 1 MHz：80 dB or greater (effect on output voltage and common mode voltage) |
| Automatic Phase Correction | Automatically performs phase correction when connected to PW8001 |
| Withstand Voltage | AC 4260 V |
