Hioki

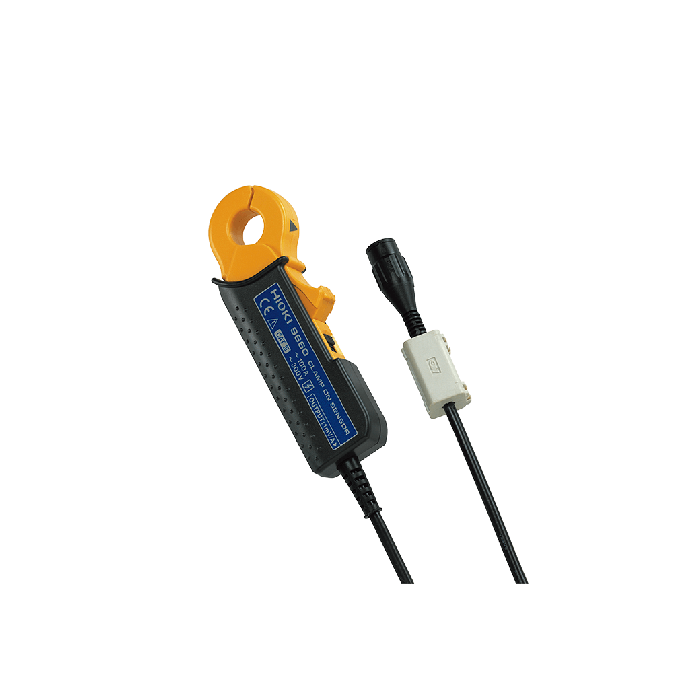

Clamp On Sensor 9660 - For measuring load current, voltage output sensor 100 A AC

main product photo
Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9660 is a 100A AC clamp sensor with voltage output for measuring load current. CAT III 300V
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • For inverter devices or commercial power lines
  • Fits in narrow spaces due to compact design
Basic Specifications
Rated measurement current 100 A AC
Max. measurement current Continuous 130 A (45 to 66 Hz)
Output rate 1 mV AC/ A
Amplitude accuracy (45 to 66 Hz) ±0.3 % rdg. ±0.02 % f.s.
Phase accuracy ±1° (45 Hz to 5 kHz)
Amplitude frequency characteristics Within ±1% at 40 Hz - 5 kHz (deviation from amplitude accuracy)
Max. rated voltage to earth 300 V AC rms or less
Measurable conductor diameter φ 15 mm (0.59 in) or less
Operating temperature and humidity 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)
Dustproofness and waterproofness N/A
Dimensions and mass 46 mm (1.81 in)W × 135 mm (5.31 in)H × 21 mm (0.83 in)D, 230 g (8.1 oz)
Cord length 3 m (9.84 ft), Output terminal: BNC
Instrument Type Clamp Meter
Notes Supports power quality analyzers, power meters and other data acquisition equipment with voltage input
More Information
Attribute Value
Data Sheet Click here to view
