A-3567
A-3567
Marki Microwave

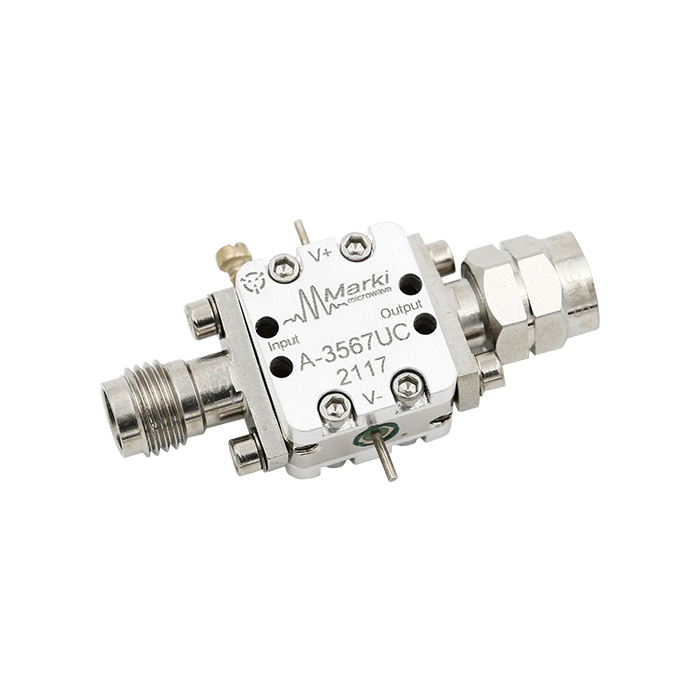

35 GHz – 67 GHz LO Driver Amplifier
The A-3567UC is a broadband MMIC LO buffer amplifier that is capable of producing at least +18 dBm up to 67 GHz. This amplifier can be used to drive L- or H-diode mixers from 35-67 GHz, or L- or H-diode IQ mixers from 35-60 GHz. It also has built-in DC blocking capacitors on the input and output.A-3567UC is a broadband MMIC LO buffer amplifier that is capable of producing at least +18 dBm up to 67 GHz. This amplifier can be used to drive L- or H-diode mixers from 35-67 GHz, or L- or H-diode IQ mixers from 35-60 GHz. It also has built-in DC blocking capacitors on the input and output.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 35 |
Minimum Input Power for Saturation [dBm] | +8 |
Maximum Input Power for Saturation [dBm] | +13 |
Saturated Output Power [dBm] | +20 |
Small Signal Gain [dB] | 18 |
OIP3 [dBm] | +26 |
Amplifier Type | LO Driver Bare Die/Modules |
Package | Module |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
