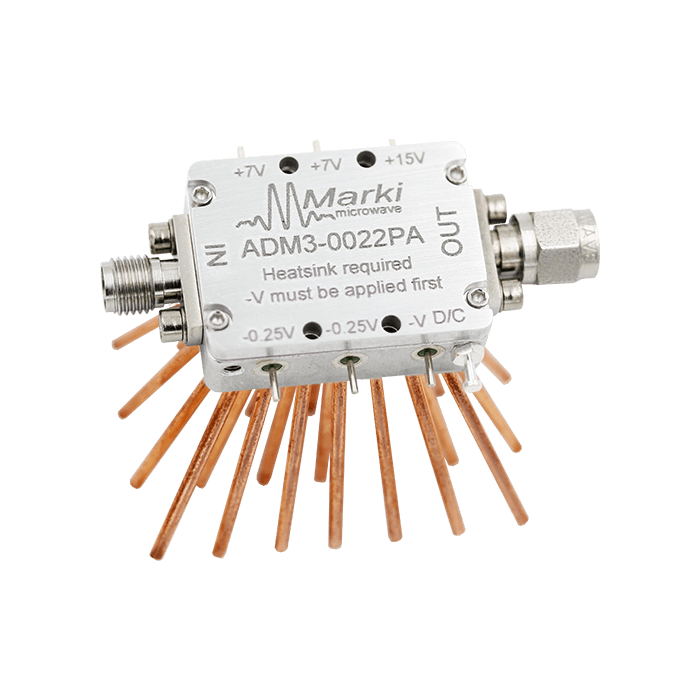

ADM3-0022PA
ADM3-0022PA
Marki Microwave
Broadband Power Amplifier
The ADM3-0022PA has the gain and output power to produce 1W of output power from a +0 dBm input power up to 22 GHz. It contains 3 broadband amplifier stages in series in a single package with built-in equalization to provide a flat gain and output power curve. This product is an unprotected amplifier module intended for lab use.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.01 |
| Minimum Input Power for Saturation [dBm] | +0 |
| Maximum Input Power for Saturation [dBm] | +10 |
| Saturated Output Power [dBm] | +30 |
| Small Signal Gain [dB] | 35 |
| OIP3 [dBm] | +31 |
| Amplifier Type | LO Driver Bare Die/Modules |
| Package | Module |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
