ADM-8625PSM
ADM-8625PSM
Marki Microwave
0.75 - 8 GHz High Dynamic Range Gain Block

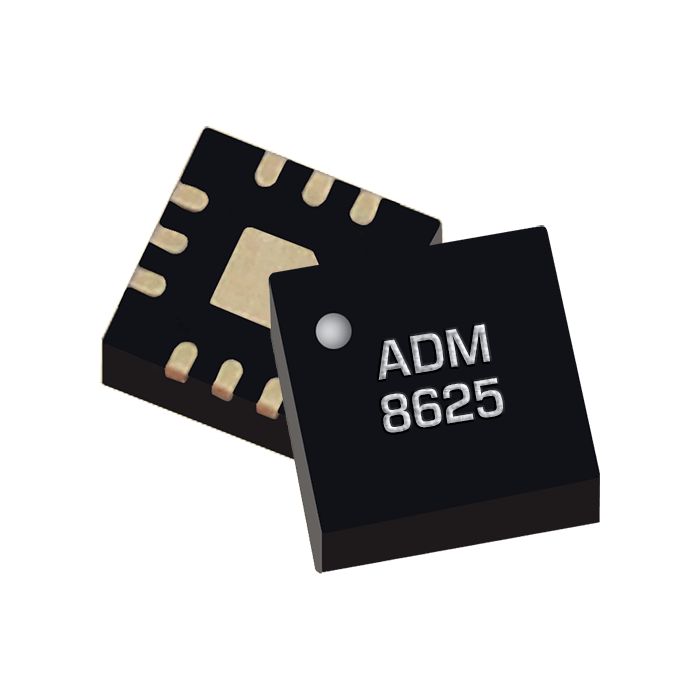

The ADM-8625PSM is a high-linearity low noise amplifier capable of providing 18 dB gain, 1.5 dB noise figure and +27 dBm OIP3 from 750 MHz to 8 GHz. The ADM-8625PSM can serve either as a linear signal amplifier, or as a saturated driver amplifier for H- or S-diode mixers. The amplifier features excellent return losses, gain flatness and high dynamic range making it suitable for RF front-end applications. The size and low power consumption of the ADM-8625PSM make it ideal for low SWaP applications. The ADM-8625PSM is available in a compact 3x3 mm QFN.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.75 |
| Noise Figure [dBm] | 1.5 |
| Small Signal Gain [dB] | 18 |
| Output P1dB [dBm] | +17 |
| Output IP3 [dBm] | 27 |
| Voltage [V/V] | +5 |
| Current [mA] | 49 |
| Amplifier Type | Gain Block |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
