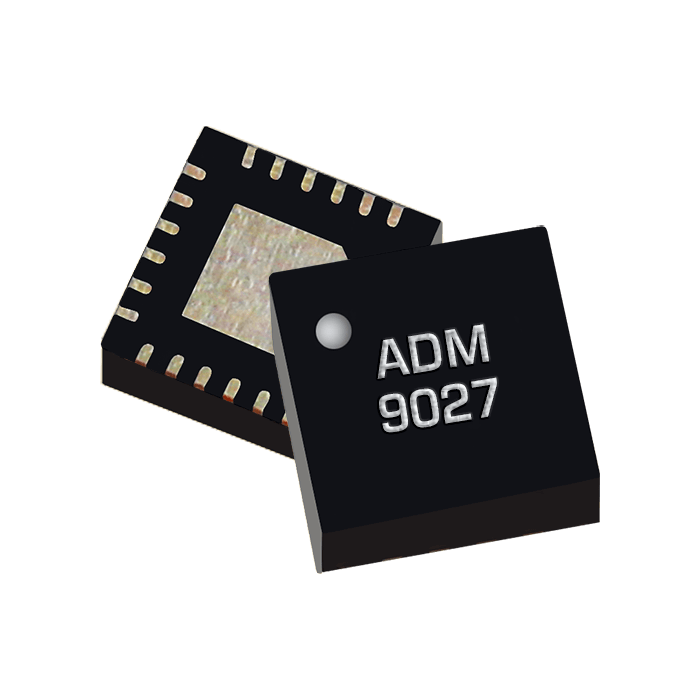

ADM-9027PSM
ADM-9027PSM
Marki Microwave
2-24 GHz Distributed Amplifier
Wideband Distributed Low Noise Amplifier 25dB
The ADM-9027PSM is a wideband distributed low noise amplifier capable of providing 16 dB gain and +25 dBm OIP3 from 2 to 20 GHz and a low 1.8 dB typical noise figure from 8 to 16 GHz.
The ADM-9027PSM is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. The amplifier has excellent return losses and gain flatness and includes integrated DC blocking capacitors and RF choke.
ADM-9027PSM Applications:
- Communication Systems
- Test and Measurement Equipment
- Satellite Communications
- Electronic Warfare
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Minimum Frequency | 2 |
| OIP3 [dBm] | +26 |
| Package | Surface Mount |
| Product Family | Amplifiers |
| Size | 4 x 4 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
