APM-6849SM
APM-6849SM
Marki Microwave
2-30 GHz Surface Mount Low Phase Noise Amplifier

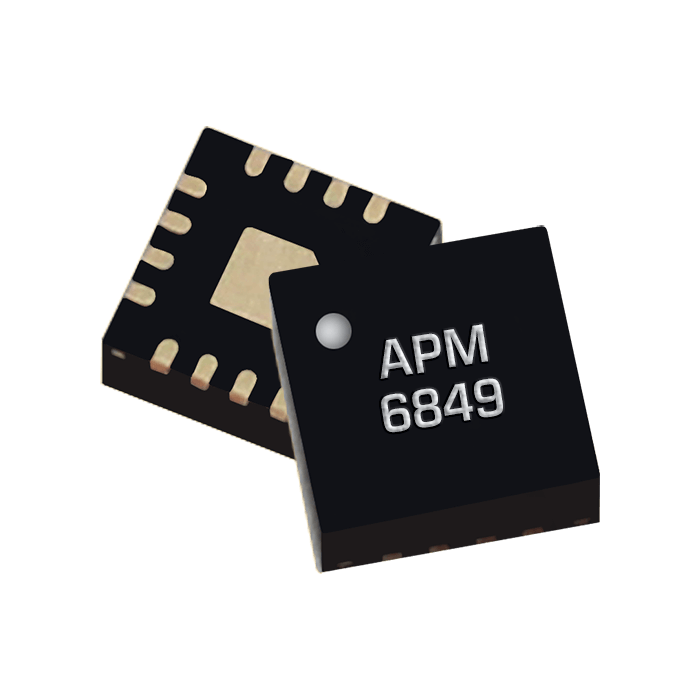

The APM-6849SM is a single stage broadband, low phase noise LO driver amplifier designed to provide saturated +21 dBm output power, packaged in a 3 mm QFN. This amplifier uses GaAs HBT technology for low phase noise, and provides industry leading ‑170 dBc/Hz at 10 kHz offset from carrier frequency. The amplifier is also highly efficient with 21% peak PAE at 5 GHz input frequency and low DC current draw. It is optimized to provide enough power to drive the LO port of an S-diode mixer (2 – 20 GHz) or an H/L-diode mixer (2 - 32 GHz). This amplifier is operational with a variety of bias conditions for both low and high-power applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 2 |
Minimum Input Power for Saturation [dBm] | +10 |
Maximum Input Power for Saturation [dBm] | +15 |
Saturated Output Power [dBm] | +21 |
Small Signal Gain [dB] | 11 |
OIP3 [dBm] | +20 |
Amplifier Type | LO Driver Surface Mounts |
Package | Surface Mount |
