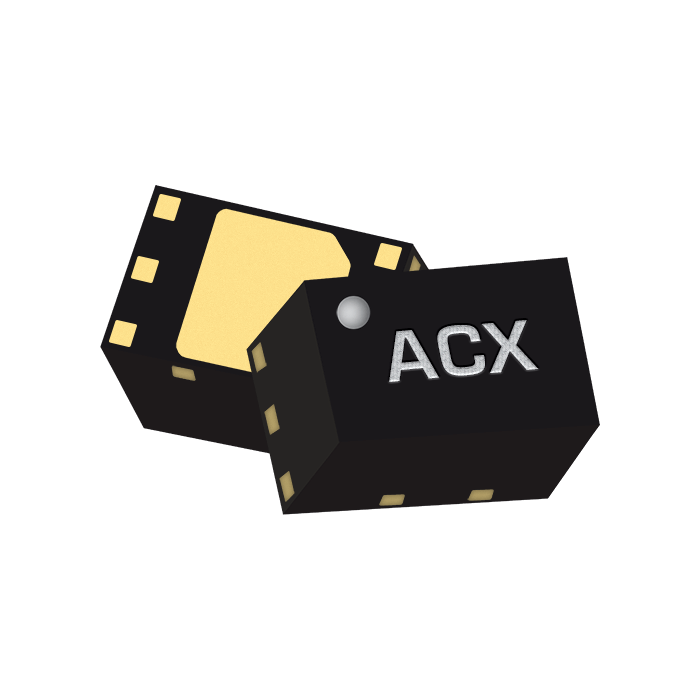

AKA-1500PSM
AKA-1500PSM
Marki Microwave
DC – 14 GHz Broadband InGaP SMT Amplifier
The AKA-1500PSM is a low-cost, cascadable broadband InGaP HBT amplifier. This is a general-purpose gain block amplifier which provides high P1dB, high OIP3, and a very small form factor. The simple application circuit requires minimal external components, allowing it to be used in a variety of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | DC |
| Noise Figure [dBm] | 4 |
| Small Signal Gain [dB] | 19 |
| Output P1dB [dBm] | +16 |
| Output IP3 [dBm] | 28 |
| Voltage [V/V] | +4.2 |
| Current [mA] | 50 |
| Amplifier Type | Gain Block |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
