ADM-8622PSM
ADM-8622PSM
Marki Microwave
DC - 10 GHz High Dynamic Range Gain Block

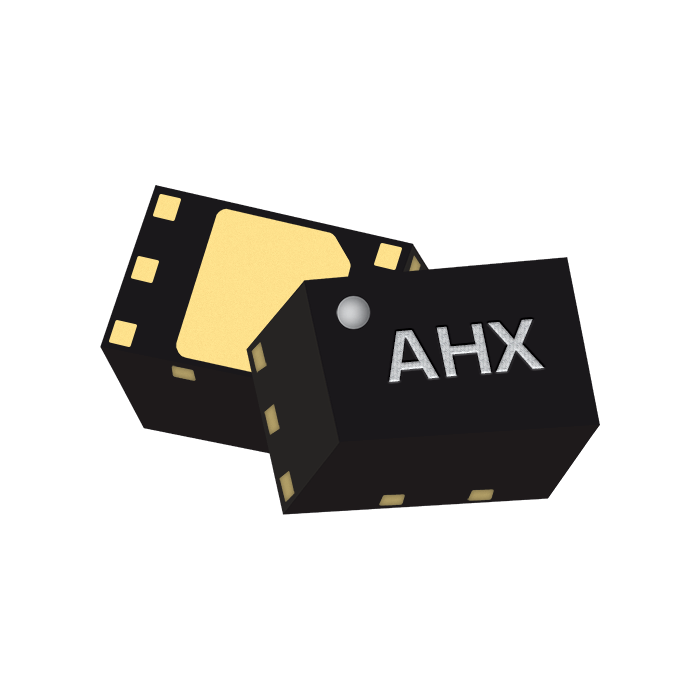

The ADM-8622PSM is a high-linearity low noise amplifier capable of providing 15.5 dB gain, 2 dB noise figure and +26 dBm OIP3 up to 10 GHz. The amplifier is suitable for use in RF front-ends requiring low noise, high gain and excellent signal fidelity. The ADM-8622PSM performs well down to DC and its low frequency performance is limited only by the frequency response of the input and output bias tees present in the application circuit. The ADM-8622PSM is available in a very compact 1.3x2mm DFN package.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | DC |
| Noise Figure [dBm] | 2 |
| Small Signal Gain [dB] | 15.5 |
| Output P1dB [dBm] | +13.5 |
| Output IP3 [dBm] | 26 |
| Voltage [V/V] | +3.3 |
| Current [mA] | 40 |
| Amplifier Type | Gain Block |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
