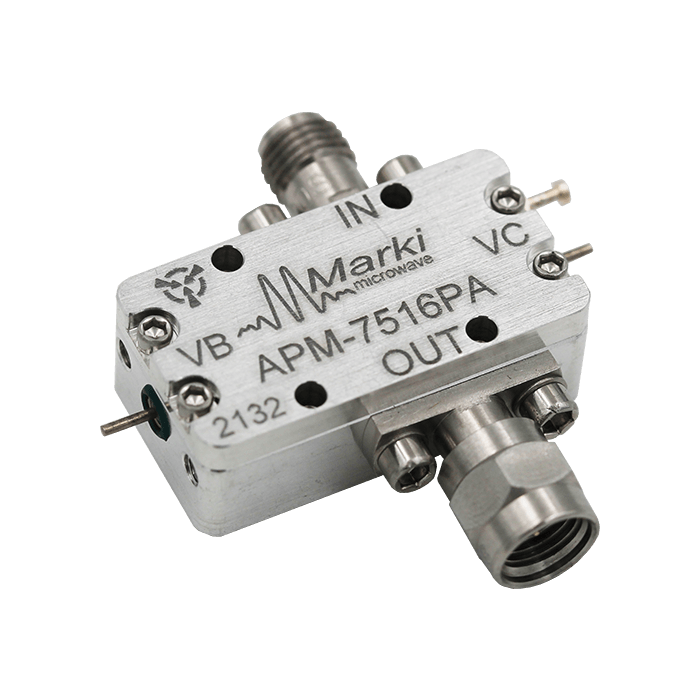

APM-7516
APM-7516
Marki Microwave
1 GHz – 22 GHz Low Phase Noise Amplifier
The APM-7516 is a robust broadband distributed, low phase noise LO driver amplifier designed to provide greater than +20 dBm output power with excellent return losses and high input power handling. This amplifier uses GaAs HBT technology for low phase noise and is optimized to provide enough power to drive the LO port of an S-diode mixer from 1 GHz to 18 GHz or of an H or L diode mixer from 1 GHz to 22 GHz. This amplifier can be operated with a variety of bias conditions for both low power and high-power applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Minimum Frequency | 1 |
Minimum Input Power for Saturation [dBm] | +10 |
Maximum Input Power for Saturation [dBm] | +14 |
Saturated Output Power [dBm] | +23 |
Small Signal Gain [dB] | 12.5 |
OIP3 [dBm] | +33 |
Amplifier Type | LO Driver Bare Die/Modules |
Package | Module |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
