BV9210B

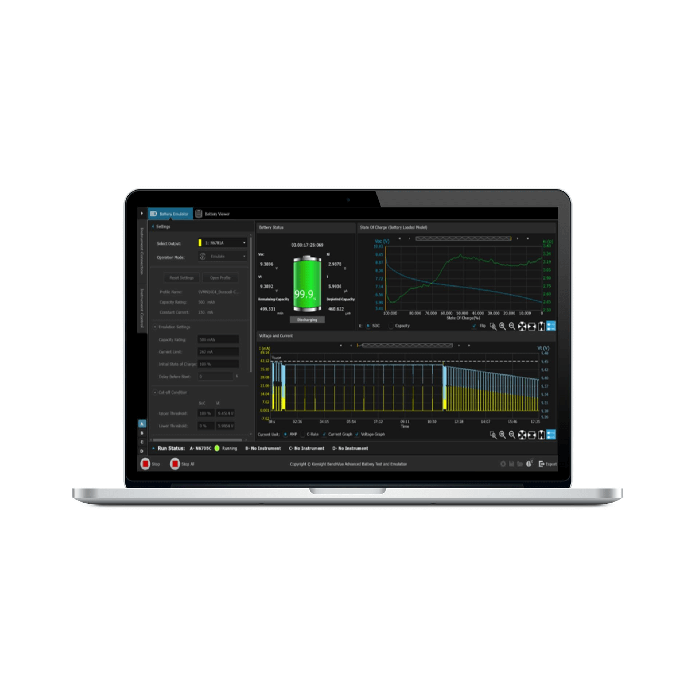

Quickly Visualize, Emulate, Profile and Cycle Batteries with the Keysight BV9210B

The Keysight BV9210B Pathwave BenchVue Advanced Battery Test and Emulation application software provides a test environment for you to easily run battery tests, generate battery models and perform battery emulation using one or more Keysight two-quadrant power supplies. The emulation function allows you to quickly output the desired battery operation conditions. It allows you to cover various test scenarios without having to wait for a real battery to go through discharging or charging conditions. Integrating the BV9210B software with Keysight’s advanced two-quadrant product families covers a broad range of low to high-power level applications, across various industries from consumer electronics, medical devices, e-mobility, residential energy storage and automotive. The BV9210B also supports RP7900 Series operation in primary/secondary mode which enables parallel units to be configured easily for greater output current/power.

BV9210B Advanced Battery Test and Emulation Software Highlights:

Battery Emulation Based On A Unique Battery Model

Achieve higher accuracy, repeatability, and safety with an emulation based on a unique battery model. Your model will allow you to determine your device's power consumption, emulate an actual battery, and import existing battery models.

• See how your device consumes power.
• Simulate actual batteries.
• Import existing battery model data from a CSV file.
• Test and emulate batteries up to 200 kW and up to 2 kV.
• Integrate into an existing program with API calls
• Profile batteries through charge / discharge to create a unique battery model.
• Emulate charge states to reduce test time, improve safety, and test repeatability.
• Visually charge / discharge batteries to determine capacity.
• Cycle batteries to determine loss of capacity and reduction of battery life.

Choose the right software model to automate all the connected power supplies.

• BV9211B: Allows only one instrument connection at a time.
• BV9210B: Allows up to four instrument connections at a time.
