MPSU50-2ST

MPSU50-2ST

Tektronix

MP5000 PSU Module, 50W, 50V, 5A, 2 Channel, Standard Power Supply

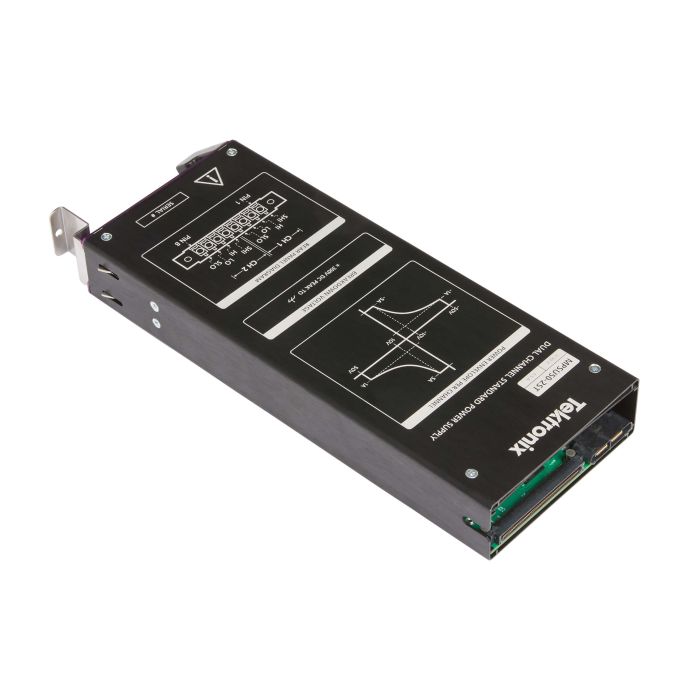

main product photo
The MP5000 Series is Tektronix’s next-generation modular precision test platform engineered to meet the evolving demands of automated test equipment (ATE) in validation and production workflows. Designed with a compact 1U form factor, it supports up to six configurable SMU or PSU channels per chassis and scales to 192 channels in parallel—maximising rack space, throughput, and test flexibility Key Features: Bipolar output Output disconnect relay Remote sensing Current readback OVP (Over Voltage Protection) & OCP (Over Current Protection) Isolated channels (stackable in series/parallel)
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote

In-House or Virtual Product Demos' Available

If you’d like a product demo or want to learn more about the Tektronix MP5000 or 7 Series DPO, our team is available to meet with you in person or online to answer your technical questions and provide expert support and guidance.

Contact our team
[email protected]
+44 330 313 3220
More Information
Attribute Value
Key Features
  • 2 isolated channels per module, 6 channels per mainframe
  • Up to 50 V and up to 5 A per channel
  • Extended voltage and current ranges with up to 100 V and up to 10 A when channels are stacked in series or parallel.
  • Bipolar output capability without switching the output leads
  • Built-in output disconnect relay for each channel physically disconnects device under test when PSU is off
  • OVP & OCP protects device from damaging signals by hardware limiting maximum voltage and current available from the PSU
  • Remote sense (4-wire) for accurate voltage output at device by compensating for voltage drops at the leads
Applications
  • Semiconductor validation and reliability testing
  • Optoelectronics (VCSEL, LED, laser diode characterisation)
  • Aerospace and defence system functional testing
  • High-density production test environments
Channels 2 isolated channels per module, 6 channels per mainframe
Whats Included 8-Position Male Screw Terminal Block (Part #: 133038500)
Dimensions 312(12.3") L x 112(4.42") W x 39.6(1.56") H (mm(inches)
Connectivity

TSP-Link: Synchronise up to 32 mainframes
18 Digital I/O pins for hardware handshaking
USB 3.0 and 1 Gigabit Ethernet for fast data streaming
More Information
Attribute Value
Data Sheet Click here to view
