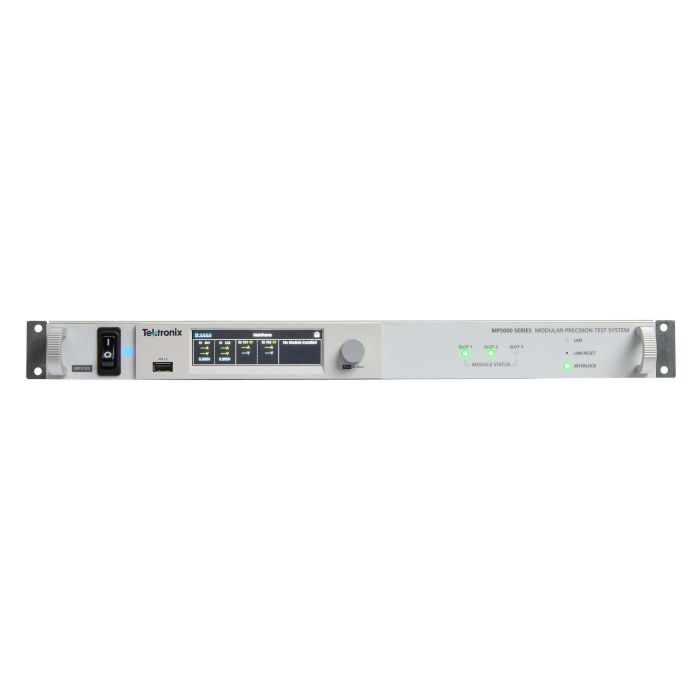

Tektronix MPS5103, 3-Slot Low Profile Modular Mainframe (600W)

MPS5103

Tektronix

MP5000 Series, 3-Slot Low Profile Modular Mainframe (600W)

Skip to the beginning of the images gallery

The MP5000 Serie is Tektronix’s next-generation modular precision test platform engineered to meet the evolving demands of automated test equipment (ATE) in validation and production workflows. Designed with a compact 1U form factor, it supports up to six SMU or PSU channels per chassis and scales to 192 channels in parallel—maximizing rack space, throughput, and test flexibility.

Key Features:

1U rack-mountable chassis with 3 rear-access module slots
Supports up to 6 channels per chassis
Mix-and-match SMU and PSU modules for flexible configurations
Swappable modules without removing/powering down the mainframe

Available to buy online - typically available in 10-15 business days. Need Sooner? Speak to a member of our Test Solutions team on 0330 313 3220.

Specifications

More Information
Attribute	Value
Key Features	Compact 1U mainframe offering significant space and cost efficiency over conventional rack-andstack systems 3 configurable slots offer flexibility to mix & match PSU and SMU modules to optimize the costperformance tradeoff Add or remove modules effortlessly without powering off the mainframe, thus reducing downtime Additional digital I/O pins (18) support efficient handshaking with other test rack equipment TSP-Link facilitates precise synchronization within 500 ns across multiple mainframes, ideal for high channel count parallel testing Employs 1 Gbps Ethernet and USB 3.0 for fast data streaming Features a modern touch display for simplified setup and troubleshooting
Maximum Voltage	1U rack-mountable chassis
Measurement Resolution	20 bits
Applications	Semiconductor validation and reliability testing Optoelectronics (VCSEL, LED, laser diode characterisation) Aerospace and defense system functional testing High-density production test environments
Channels	Up to 6 channels per chassis (2 channels per module)
Sampling Rate	Programmable 1 kSa/s – 1 Msa / s
Whats Included	MP5103 1U Modular Mainframe Fixed 1U Rack Mount Kit (Part #: 4299-15) Digital I/O Terminal Block (Part #: 174745100) Interlock Connector (Part #: 133062300) Power Cord (region-specific) Quick Start Guide / Safety Manual Web Interface Access Instructions
Dimensions	483(19") L x 483(19") W x 44(1.73") H (mm(inches)
Connectivity	TSP-Link: Synchronise up to 32 mainframes 18 Digital I/O pins for hardware handshaking USB 3.0 and 1 Gigabit Ethernet for fast data streaming
Output Power	600_W
Record Length	5M readings
