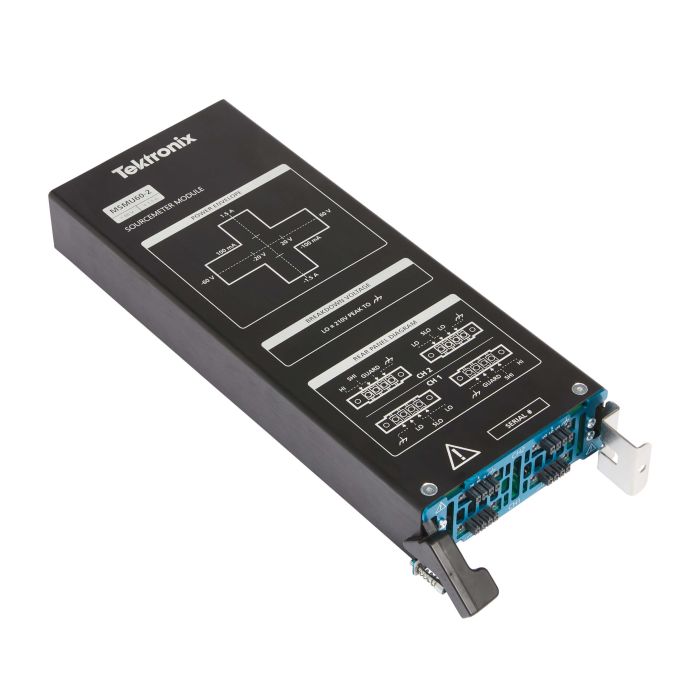

MP5000 SMU Module, 30W, 60V, 1.5A, 2 Channel

The MP5000 Series is Tektronix’s next-generation modular precision test platform engineered to meet the evolving demands of automated test equipment (ATE) in validation and production workflows. Designed with a compact 1U form factor, it supports up to six configurable SMU or PSU channels per chassis and scales to 192 channels in parallel—maximising rack space, throughput, and test flexibility

Key Features:

  • Four-quadrant operation
  • Asymmetric compliance (independent positive/negative limits)
  • Enhanced remote sensing with autosense resistors
  • Contact check and transient protection
  • High capacitive load capability
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

In-House or Virtual Product Demos' Available

If you’d like a product demo or want to learn more about the Tektronix MP5000 or 7 Series DPO, our team is available to meet with you in person or online to answer your technical questions and provide expert support and guidance.

More Information
Attribute Value
Key Features
  • 2 SMU channels per module, 6 channels per mainframe
  • Up to 60V and up to 1.5 A per channel
  • Offers 4-quadrant voltage/current source and measure for each channel with 6½-digit measure resolution down to 100 femtoamps
  • Integrated 1 MSa/s ADCs for both voltage and current measurements using fast sample rates
  • Up to 6 V between force and sense allowing users more flexibility in cabling and test setup
  • User selectable auto-sense resistor prevents excessive voltage at Force Hi if there are contact errors
  • Asymmetric Compliance: Configure independent positive and negative limit values
Measurement Resolution Down to femtoampere (fA) level
Applications
  • Semiconductor validation and reliability testing
  • Optoelectronics (VCSEL, LED, laser diode characterisation)
  • Aerospace and defence system functional testing
  • High-density production test environments
Channels 2 isolated channels per module, 6 channels per mainframe
Whats Included 4x Connectors,4 Position Male Connector, Screw Terminal Block
Dimensions 312(12.3") L x 112(4.42") W x 39.6(1.56") H (mm(inches)
Connectivity

TSP-Link: Synchronize up to 32 mainframes
18 Digital I/O pins for hardware handshaking
USB 3.0 and 1 Gigabit Ethernet for fast data streaming

More Information
Attribute Value
Data Sheet Click here to view
