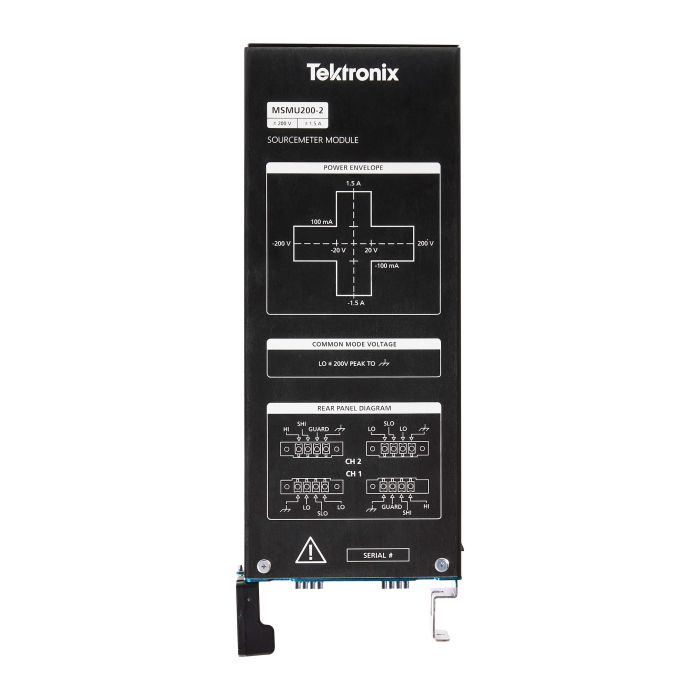

MP5000 SMU Module, 30 W, 200 V, 1.5 A DC, with extended pulse capability, 2 channels
A two-channel, 200 V source measure unit for higher-voltage and pulsed testing on the MP5000 Series
The Tektronix MSMU200-2 takes the MP5000 from 60 V to 200 V. Each channel sources and measures in all four quadrants within a 30 W envelope, pulses up to 7 A to limit device self-heating, and resolves currents down to 100 fA. It suits breakdown and reliability testing, semiconductor characterisation and optoelectronics such as VCSELs and laser diodes. It fits the MP5103 mainframe (sold separately) alongside other SMU and PSU modules.
Key Features:
- ±200 V at 100 mA; ±20 V at 1.5 A DC
- 7 A pulsed output
- 1 MSa/s digitiser for voltage and current
- Contact Check and overvoltage protection
- Independent source and sink current limits
- TSP-Link sync to within 500 ns
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Maximum Voltage | 200 V |
| Maximum Current | 1.5 A |
| Measurement Resolution | 100 fA / 500 nV |
| Channels | 2 |
| Connectivity |
Rear-panel screw-terminal connections per channel. Via the MP5103 mainframe: TSP-Link (up to 32 mainframes), 18 digital I/O pins, USB 3.0 and 1 Gigabit Ethernet (LXI) |
| Output Power | 30 W |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
