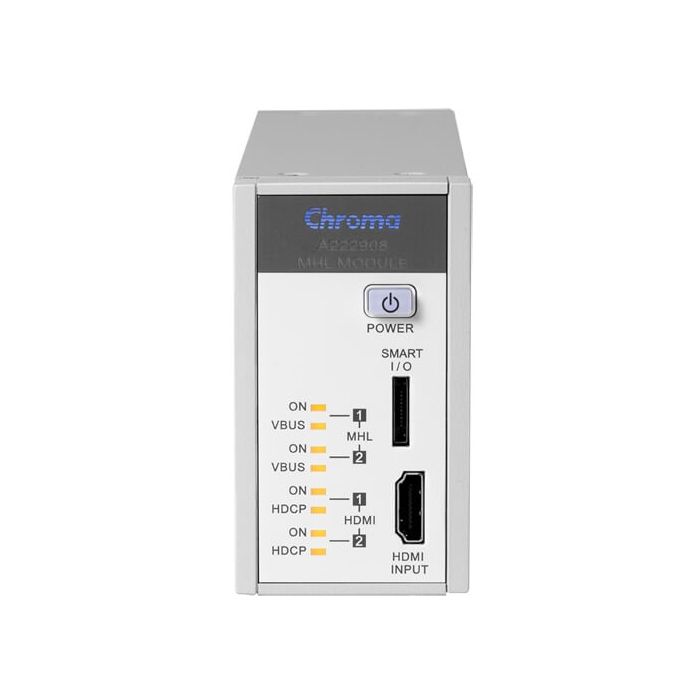

A222908

MHL Module

Chroma A222908 MHL module is a test equipment that supports the Mobile High-definition Link (MHL™) signal, which is able to work with the Chroma Video Pattern Generator for extending MHL signal output, in order to provide the solutions for the display industry.

The A222908 supports the specification of MHL v2.0 which can expand 1 set of HDMI signal to 2 sets of MHL signal and HDMI signal.

Key Features:

• Compliant with MHL 2.0 standard
• MHL pixel rate support up to 150MHz
• – 1080p 60Hz – 3D format
• Cbus (RCP) test function
• Vbus test function
• – Active load 500/900mA – Voltage & current measurement
• EDID / HDCP linking test
• Test result on screen display
• 8 channel audio
• 2 MHL ports output
• 2 HDMI ports output
• ESD protection
• High cost-performance value
• Compliant with Chroma 22/23/24 series
