A222915
A222915
Chroma ATE
MHL Module
SDI Module

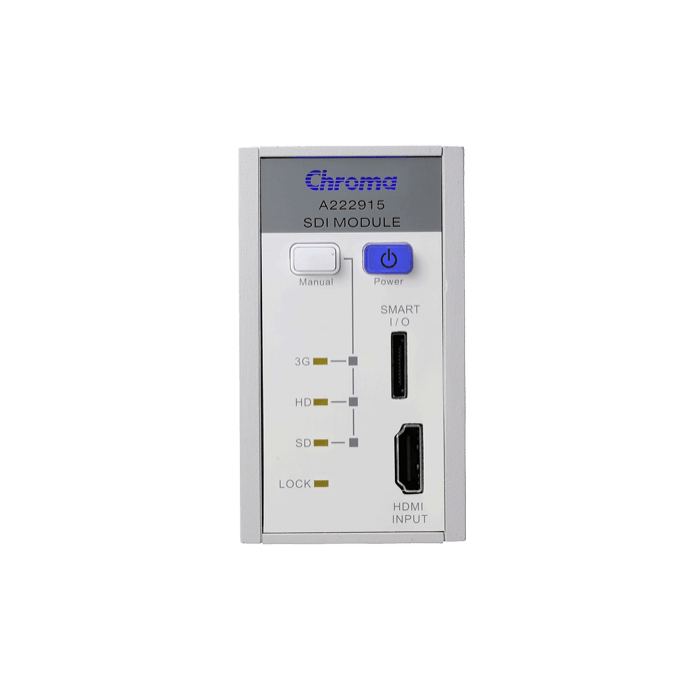

The Chroma A2229015 SDI Module is specially designed to meet the test demands of diversified low cost SDI signals for today’s display industry.
It is an HMDI to SDI Adapter that can be controlled by Smart I/O. With the combination of the Chroma VPG with A222915, the external module can be connected for various SDI tests.
The Chroma A222915 is equipped with the latest 3G-SDI standard resolution which is the mainstream specification of all 1080P transmissions. It can double the HDTV transmission rate in the advanced video environment.
Key Features:
- Converts HDMI signals to SDI signal output
- Support 48K Audio output
- SDI Output x 2
- SYNC Output x 1
- Comply with SDI Standard (SMPTE)
– SD-SDI : SMPTE-259M
– HD-SDI : SMPTE-274M / 296M
– 3G-SDI : SMPTE-425M (Level A/B) - SD/HD/3G format auto identification
- Control by Smart I/O interface
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
