ACMI Series (Ethernet Port)

ACMI Series (Ethernet Port)

ACMI Series (Ethernet Port)

Bird

Antenna & Cable Fault Detection

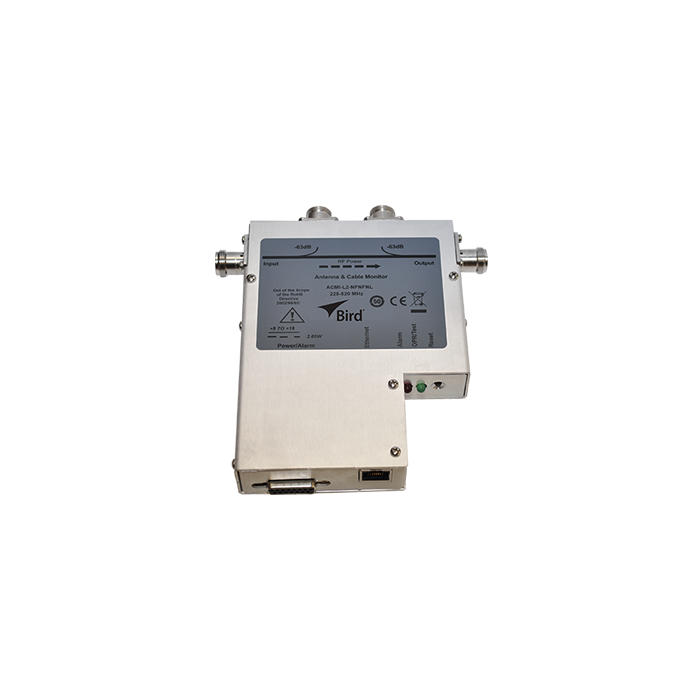

Bird’s® Antenna & Cable Monitor is the reliable solution for monitoring your RF transmission systems. Service providers and self maintained end user can depend on this monitor and alarm to keep their critical sites up and running. Designed to detect antenna and cable faults that transmitterinternal VSWR monitors may not detect. An integral coupler with high directivity optimizes measurement accuracy. It measures small changes in antenna VSWR with high feeder and interface losses and provides accurate RF in-line power measurement functionality.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

ACMI Series (Ethernet Port) Specifications

  • Provides multiple alarms if an antenna or cable failure should occur.
  • Measures true average power of signals with high peak-to-average characteristics - works with any modulation.
  • Monitors transmitter output power and includes low or high power alarms.
  • Remote access with both monitoring and control via serial and ethernet interfaces.
  • Included as standard Push-To-Talk (PTT) input to avoid false alarm triggering when the transmitter (radio) is not keyed.
More Information
Attribute Value
Product Brand Name Antenna and Cable Monitors (Ethernet Port)
Manufacturer Bird
Relative Humidity 0 to 95% maximum (non-condensing)
Certificates CE Compliant EMC: European Standard EN 61326-1:1997 + Addendums A1: 1998 and A2:2001 - Electrical equip. for measurement Safety: European Standard EN 61010-1:2001- Safety Requirements - Electrical equip. for measurement, control and laboratory use - ECM Requirements
Altitude Up to 3000 meters above sea level
Frequency Range 108-144 MHz 136-225 MHz 225-520 MHz 470-960 MHz 960-2400 MHz
Insertion Loss 108-960 MHz: 0.1 dB 960-2400 MHz: 0.15 dB
VSWR Range 108-960 MHz: 1.07 (N or 7/6 DIN Connectors) 960-2400 MHz: 1.1 (N Connectors) 960-2000 MHz: 1.1 (7/16 DIN Connectors) 2000 to 2400 MHz: 1.2 (7/16 DIN Connectors)
Measurement Range ACMI: 2.5 to 100 W ACMI 500: 12.5 to 500 W
Power Accuracy 108-144 MHz, ± 8% 136-225 MHz, ± 10% 225-520 MHz, ± 8% 470-960 MHz, ± 5% 960-2400 MHz, ± 5%
Reflected Directivity 108-960 MHz: 30 dB 960-2400 MHz: 26 dB
Alarm Characteristics VSWR Alarm Set Point 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5 to 1 Relay Contact Type Dry, Form C, relay contacts, common, normally open, normally closed Contact Rating: 100 VDC @ 0.5A Visual Alarm: Red LED will illuminate to indicate alarm Stimulus: VSWR set point exceeded, response time proportional to overload Reset: Local Mechanical reset switch Remote input (Reset if VDC is 0 to +0.8 volts) Push to Talk: +5/+24 VDC to activate
System General: Thruline® sensor for direct insertion in 50-ohm line Maximum Line Section Power: Dependent on frequency and connector Passive Intermodulation Products: Less than -130 dBc Power Requirements: ±9 to 18 VDC or ±18 to 36 VDC or ± 36 to 72 VDC
Applications 3G, Low Power Broadcast, CDMA & CDMA 2000, Edge, GSM, Microwave, Paging, TDMA, TETRA & TETRAPOL, VHF & UHF, LMR and WLL
Interface Connectors: Female N, TNC or BNC Coupling: -63 dB approx., subject to changes in full-scale power RF Connectors: N or 7/16 DIN Alarm/Power Connector: 15-pin Female “D” connector Ethernet Port: 10/100-BASE-T (auto-sensing) Ethernet Version 2.0 / IEEE 802.3 Protocols: ARP, UDP/IP, DHCP, BOOTP, Auto IP, HTTP,and SNMP LED Lights: Left LED: Amber: 10 Mbps. Green: 100 Mbps Right LED: Amber: Half-duplex. Green: Full-duplex Security: 128-bit encryption
Temperature Range Operating: 32 to 122 °F (0 to 50 °C) Storage: -4 to 176 °F (-20 to 80 °C)
Dimensions 7.6" x 7.2" x 1.06" (192 x 183 x 27 mm)
More Information
Attribute Value
Data Sheet Click here to view
