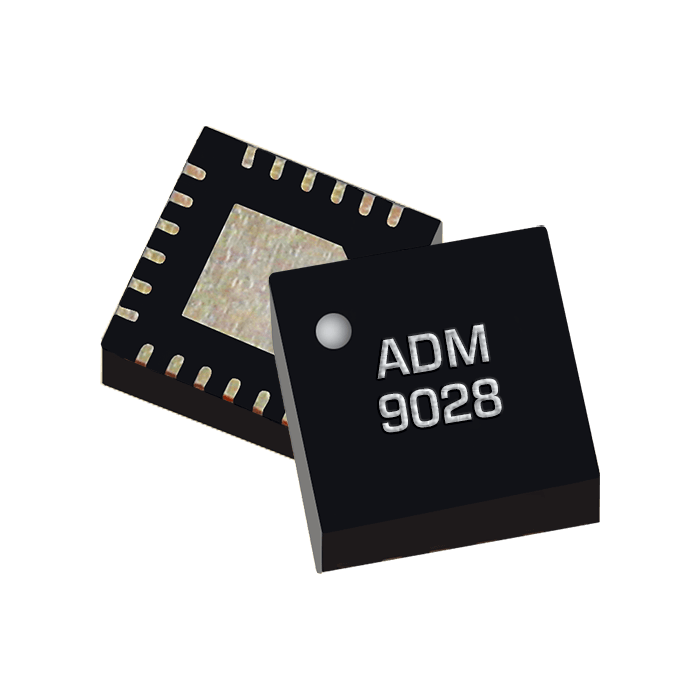

ADM-9028PSM
ADM-9028PSM
Marki Microwave
300kHz - 26 GHz Distributed Amplifier
Wideband Distributed Low Noise Amplifier 24dB
The ADM-9028PSM is a wideband distributed low noise amplifier capable of providing 16 dB gain and +24 dBm OIP3 from 10MHz to 26 GHz and a low 2.5 dB typical noise figure from 6 to 20 GHz.
The ADM-9028PSM is an ideal linear signal amplifier for applications requiring low power consumption and small form-factors. ADM-9028PSM is DC coupled with the low end limited by the blocking capacitors. Available in a surface mount 4x4mm QFN package. The amplifier has excellent return losses and gain flatness.
ADM-9028PSM Applications:
- Test and Measurement Equipment
- Radar and satellite communications
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Minimum Frequency | 0 GHz |
| OIP3 [dBm] | +24 |
| Package | Surface Mount |
| Product Family | Amplifiers |
| Size | 4 x 4 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
