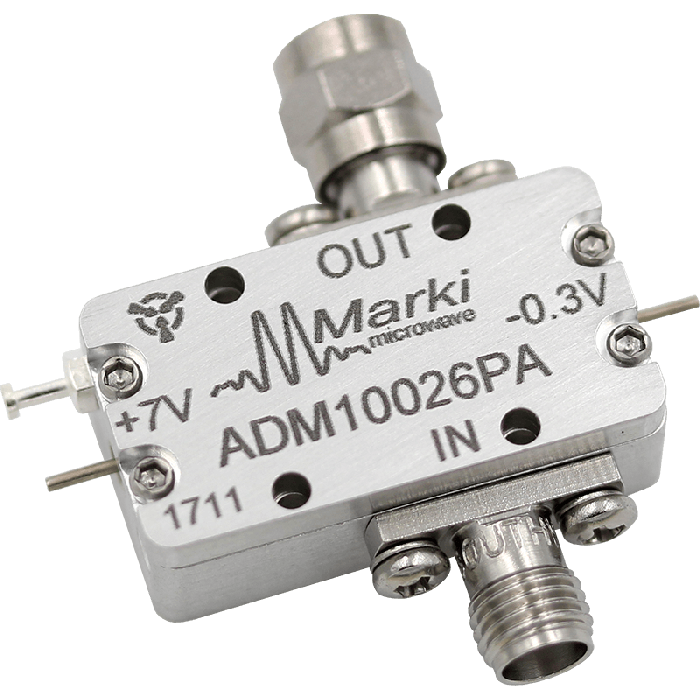

Broadband Distributed Amplifier
The ADM1-0026PA is a complete LO driver solution for use with all Marki mixers up to 26.5 GHz. This single-stage packaged GaAs MMIC distributed amplifier integrates all required biasing circuitry. It offers 12 dB typical gain and 21 dBm saturated output power, which is suitable for driving all L, M, I, and H mixers. In saturation it produces a square wave that is optimal for driving a T3 with the highest linearity. The amplifier is operated with a +3V to +7 V positive bias and an optional current reducing negative voltage. While optimized as a mixer LO driver, it is suitable for many applications in test and measurement and laboratory applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.005 |
| Minimum Input Power for Saturation [dBm] | +5 |
| Maximum Input Power for Saturation [dBm] | +15 |
| Saturated Output Power [dBm] | +20 |
| Small Signal Gain [dB] | 12 |
| OIP3 [dBm] | +25 |
| Amplifier Type | LO Driver Bare Die/Modules |
| Package | Module |
