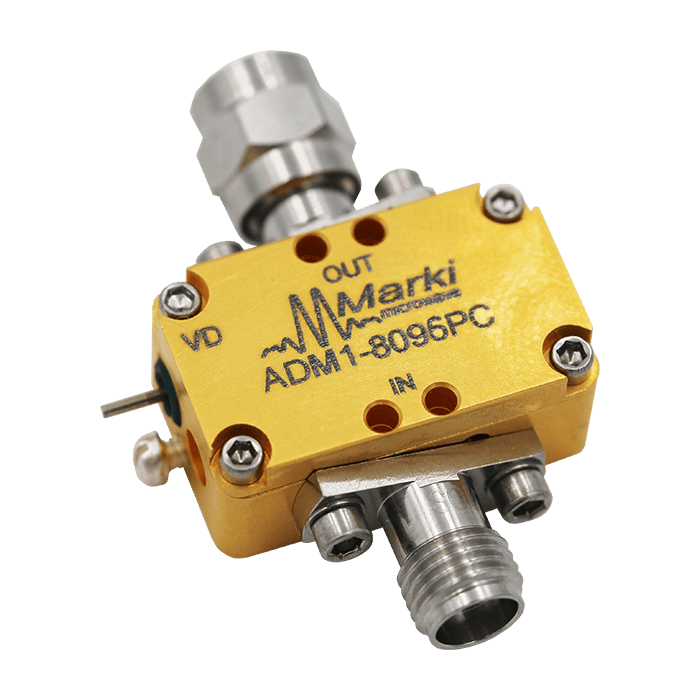

ADM1-8096PC
ADM1-8096PC
Marki Microwave
0.09 - 6 GHz High Dynamic Range Gain Block
The ADM1-8096PC is a high-linearity amplifier capable of providing +23 dBm output power up to 6 GHz. The ADM1-8096PC can serve either as a linear signal amplifier, or as a saturated driver amplifier for H- or S-diode mixers. The amplifier has excellent return losses and gain flatness.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 0.09 |
| Minimum Input Power for Saturation [dBm] | +2 |
| Maximum Input Power for Saturation [dBm] | +6 |
| Saturated Output Power [dBm] | +23 |
| Small Signal Gain [dB] | 22.5 |
| OIP3 [dBm] | +35 |
| Amplifier Type | LO Driver Bare Die/Modules |
| Package | Module |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
