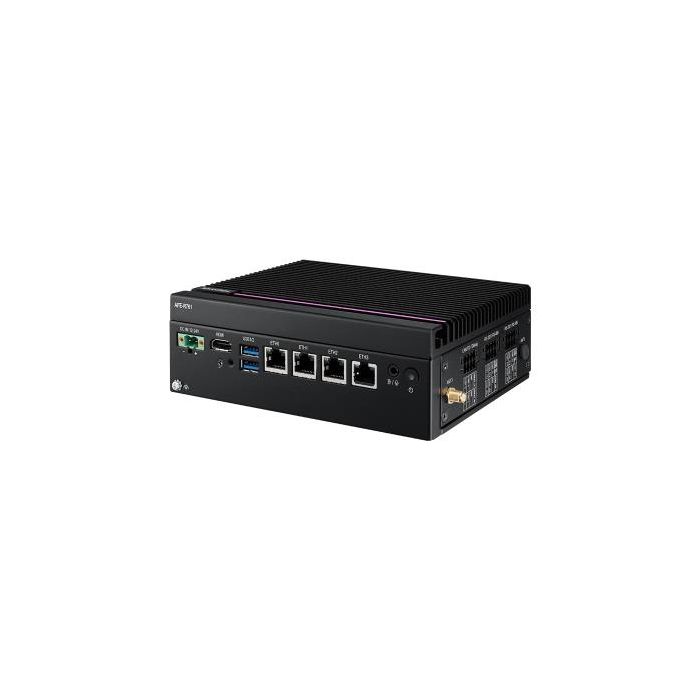

AFE-R761

Rockchip RK3588 Arm Quad Cortex-A76 and Quad Cortex-A55

Key Features

• Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz
• Built-in NPU with processing performance of up to 6 TOPS
• Onboard 4/8GB LPDDR4 memory and 32/64GB eMMC
• Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding
• Dedicated I/Os for AMR:
  • 1 x 2.5GbE, 3 x GbE
  • 2 x USB3.2, 4 x USB2.0, 2 x CAN FD
  • 4 x RS-485, 8bit isolated DIO
• 12-24V DC In, Contact 8KV, Air 15KV ESD Protection
• Provides a M.2 E Key with PCIe 2.1, USB 2.0 signal and a M.2 B Key with PCIe 2.1/SATA, USB 2.0 signal
• Support Linux Debian 12, Android 14, and Advantech Robotic Suite SDK
