Name: AFG31051
Brand: Tektronix
SKU: AFG31051
Price: 2290.00 GBP
Availability: OutOfStock

AFG31051

Tektronix

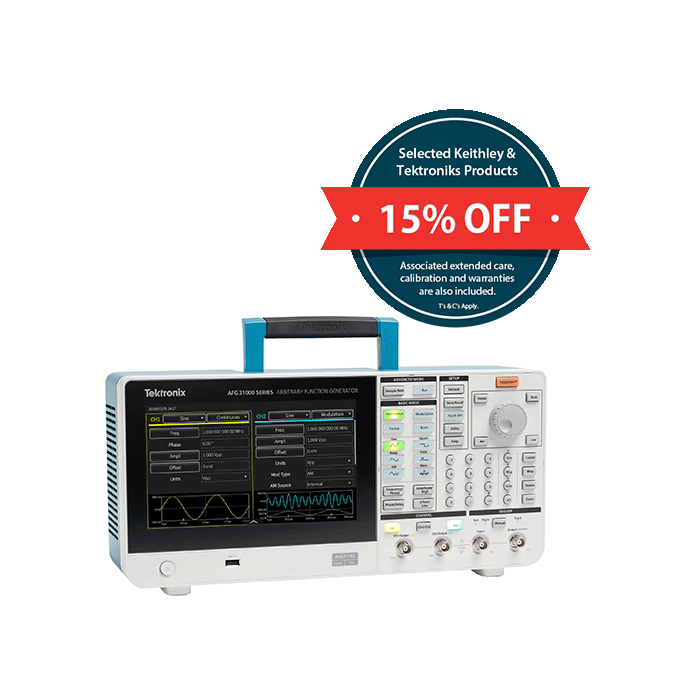

50 MHz, 1 channel, Arbitrary Function Generator

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The Tektronix AFG31000 Series is a high-performance AFG with built-in arbitrary waveform generation, real-time waveform monitoring, and the largest touchscreen on the market. Providing advanced waveform generation and programming capabilities, waveform verification, and a modern touch-screen interface, the new AFG31000 is sure to delight and simplify the job of every researcher and engineer.

Contact our team for stock availability and product options.

Price £2,290.00

Request a quote

Discover Tektronix's factory service plans

Protect your investment and your uptime with Tektronix's service plans, review each plan and choose which is best for you.

Find out more

[email protected]

+44 330 313 3220

This product is eligible for 15% discount!

Get 15% off eligible Keithley and Tektronix products. Available until 26th July 2024. T&Cs Apply, for more information see below or contact a member of our team.

Find out more

[email protected]

+44 330 313 3220

Specifications

More Information
Attribute	Value
Manufacturer Product Family	AFG31000
Key Features	Patented InstaView™ technology enables engineers to see the actual waveform at the Device Under Test (DUT) in real time, without the need of an oscilloscope and probe, eliminating the uncertainty caused by mismatched impedance Sequencing option adds the ability to program long, complex waveforms with up to 256 steps The 9-inch capacitive touch screen works like a smart phone and has short-cuts to frequently used settings Built-in ArbBuilder lets you create and edit arbitrary waveforms on the instrument, eliminating the need to connect to a PC Outputs are protected from over voltage and current to minimize potential instrument damage Built-in Double Pulse Test application to generate voltage pulses with varying pulse widths onto the DUTs
Channels	1
Sample Rate	500 MS/s
Record Length	16 MSa/ch
Key Performance Specifications	1 or 2 channel models Output amplitude range 1 mV_P-P to 10`V_P-P into 50`Ω loads Basic (AFG) mode: 25 MHz, 50 MHz, 100 MHz, 150 MHz, or 250 MHz sine waveforms 250 MSa/s, 1 GSa/s or 2 GSa/s sample rates 14-bit vertical resolution Built-in waveforms include sine, square, ramp, pulse, noise, and other frequently used waveforms Sweep, Burst, and Modulation modes (AM, FM, PM, FSK, and PWM) Advanced (Sequence) mode: Continuous mode (optional Sequence, Triggered and Gated modes) 16 Mpts arbitrary waveform memory on each channel (128 Mpts optional) Up to 256 steps in sequence mode with loop, jump and wait events Variable sampling clock 1 µSa/s to 2 GSa/s
Output Frequency (GHz)	50 MHz
Vertical Resolution	14-bit
Applications	Advanced research Clock and system synchronization Replication of real world signals Component and circuit characterization and validation Embedded circuit design and test General purpose signal generation Double pulse test
