AIMB-294
AIMB-294
Advantech

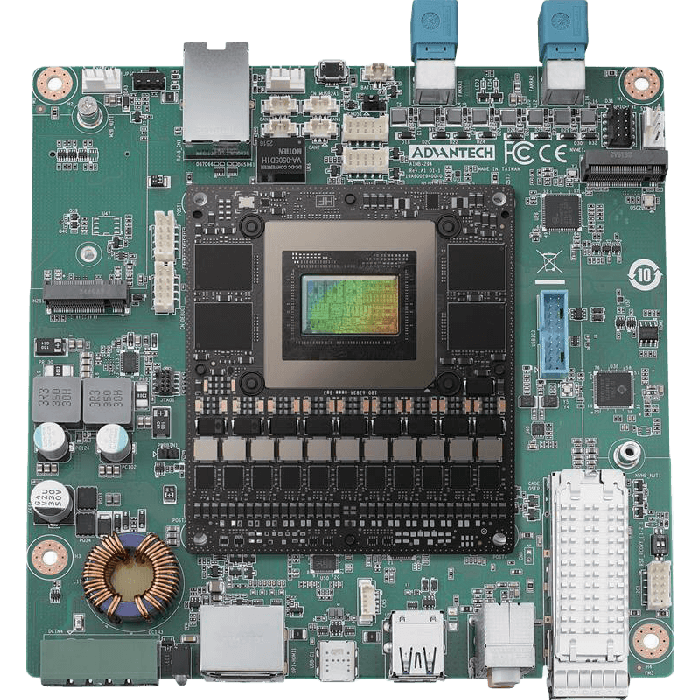

Mini-ITX Motherboard Accelerated by NVIDIA® Jetson Thor™
Mini-ITX Motherboard Accelerated by NVIDIA® Jetson Thor™.
Key Features:
- Accelerated by NVIDIA Jetson T5000™, up to 2560 CUDA Cores, 128GB LPDDR5X
- AI Performance: 2070 TFLOPS
- Super speed I/O: USB3.2 gen2, GMSL, 4 x 25G optical connectivity, 4K displays
- Rich Expansion: M.2 M-key NVMe SSD, B-key & E-key for Wireless connection
- Reliable operation: TPM2.0 onboard, ESD Level 4 protection
- 24V DC power input, Mini-ITX (170 x 170 mm)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| CPU |
14 core Arm® Neoverse V3AE (64-bit) SMP CPU architecture |
| GPU | 2560-core NVIDIA Blackwell architechure, with 96 fifth-gen Tensor Cores |
| NVIDIA® CPU/GPU | NVIDIA® Jetson Thor™ |
| Memory | 128GB 256-bit LPDDR5X |
| USB |
1 x USB Type-C, DP alt mode |
| Serial Ports | 2 x COM (RS232/RS485) |
| Expansion M.2 | 1x M.2 3052 B Key(5G/LTE) / 1x M.2 2230 E Key(WIFI/BT) |
| TPM (Optional) | NPCT764 |
| M.2 B-Key | 1 x B-Key, 3052. Signal: PCIe x1/USB3.2/USB2/I2C |
| M.2 E-Key | 1 x E-Key, 2230. Signal: PCIe x1, USB2 |
| HDMI | 1 x HDMI 2.1, max. 7680x4320 (8K) 30Hz |
| GMSL | 4 x FAKRA (Optional) |
| I2C | 3 (pin header) |
| Audio | Mic in & Line out |
| CANBus | 4 x CAN |
| Maximum Frequency | 1_57_GHz |
| TDP | 130W |
| DP | 1 x DP1.4a, max 7680x4320 (8K) 30Hz |
| M.2 M-Key | 1 x M-Key, 2280. Signal: PCIe5 x4 (NVMe SSD) |
