Advantech

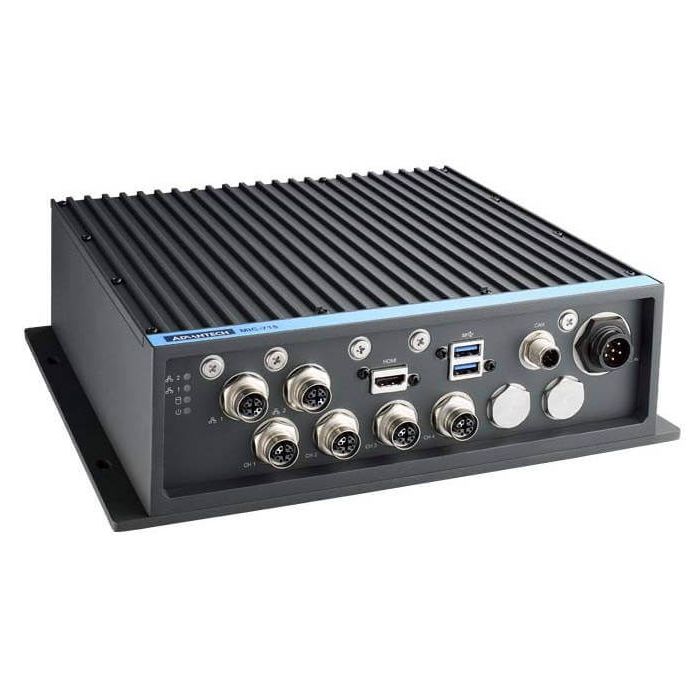

AI Inference System Based on NVIDIA® Jetson™ Xavier NX

AI Inference System Based on NVIDIA® Jetson™ Xavier NX.

Key Features:

  • Compact, IP67 rated, waterproof fanless design
  • Embedded NVIDIA® Jetson™ Xavier NX
  • Supports 4 x IEEE 802.3af compliant PoE
  • Linux OS with board support package (BSP)
  • Supports deep learning trained models
  • Supports wide operating temperature range
  • Supports 24/7 secure remote monitoring, control, and OTA deployment powered by Allxon
  • Optional SerDes GMSL
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
CPU

ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 3 x dual-core CPU clusters (six NVIDIA Carmel processor cores) (Max. Operating Frequency: 1.9 GHz)

GPU

384 CUDA Core, 48 x Tensor Cores, up to 21 TOPS (INT8) performance
Max. operating frequency: 1100 MHz
Max. operating frequency: 1100 MHz

NVIDIA® CPU/GPU NVIDIA® Jetson Xavier™ NX
Memory 8 GB 128-bit LPDDR4x DRAM
Flash 16GB Emmc
Controller Intel® I210
Speed 6 x Gigabit Ethernet (10/100/1000 Mbps), supports 4 x PoE ports, and is IEEE 802.3af compliant
Interface M12 X-coded, 8-pin female
USB

External
2 x USB 3.0 (waterproof connector)

Serial Ports 2 x CAN (interface: M12 A-coded, 5-pin male)
OTG USB 1 x Micro USB
Mini PCIe 2 x Full size MiniPCIe with 1 x SIM slot
Expansion M.2 1 x M.2 3052 B key (5G)
Storage M.2 1 x M.2 2280 M Key (support NVMe)
SD Card 1 x MicroSD slot
Display HDMI (Max. resolution 3840 x 2160 @ 60Hz)
More Information
Attribute Value
Data Sheet Click here to view
