EPC-T5294
EPC-T5294
Advantech

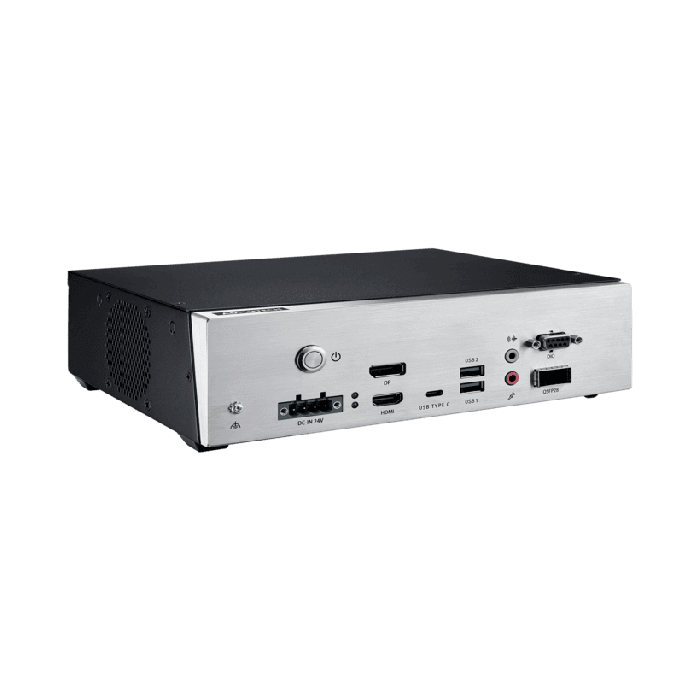

NVIDIA® Jetson Thor™ AI System
NVIDIA® Jetson T5000 Thor™ AI System.
Key Features:
- Up to 2070 TFLOPS AI computing
- Dedicated I/Os for Robotics: 6xGbE,4xUSB, 2xCOM, DIO, CANFD
- Supports 1x QSFP28 (4x 25 GbE)
- Supports 4xCOM, 8-bit DIO and CANBus
- Supports NVIDIA JetPack™ 7.0
- TPM 2.0 onboard for security
- Supports Advantech Edge AI SDK
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| CPU |
14-core Arm® Neoverse®-V3AE 64-bit CPU |
| GPU | 2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores |
| NVIDIA® CPU/GPU | NVIDIA® Jetson Thor™ |
| Memory | 128GB |
| Speed | 1x 5GbE, 4x 25GbE |
| COM | 2x RS232/485 |
| Display | 1 x HDMI 2.1, max. 7680x4320 (8K) 30Hz |
| Ethernet | 1x RJ45, 1x QSFP28 |
| AI Performance | up to 2070 TFLOPS (FP4) |
| Power Type | ATX/AT mode, ATX default |
| Power Supply Voltage | 24V (± 10%) |
| M.2 B-Key | 1 x 3052 (PCIex1, USB, SIM) |
| M.2 E-Key | 1 x 2230 |
| GMSL | 2x mini FAKRA 4P |
| CANBus | 8 bit, DB9 |
| USB Type-C | 1 x Type C USB (5V/3A 15W DP alt mode supported) |
| USB Type-A | 2 x USB 3.2 Type A |
| TDP | 40-130W |
| DP | 1 x DP 1.4a, max 7680x4320 (8K) 30Hz |
| DI/DO | 8 bit, DB9 |
| M.2 M-Key | 1 x 22801 x 2280 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
