AIR-030

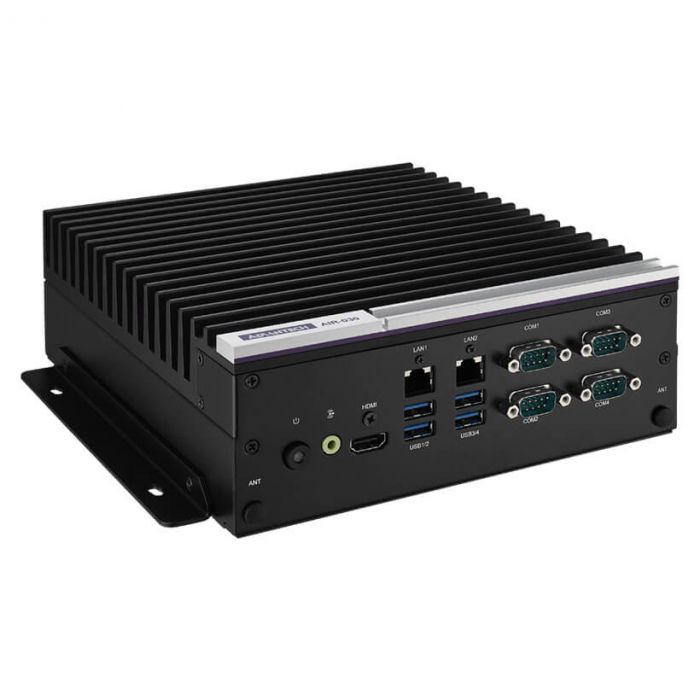

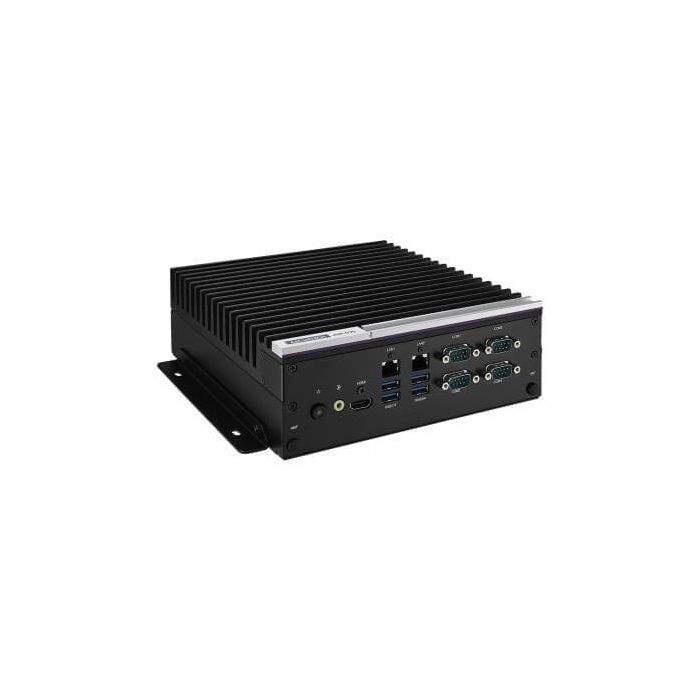

AIR-030 High-Performance Edge AI Systems with Jetson AGX Orin

Featuring a rugged design with dimensions of 200 x 220 x 74 mm (7.87” x 8.66” x 2.91”), the AIR-030 series delivers powerful AI inferencing capabilities by utilizing NVIDIA Jetson AGX Orin for energy-efficient autonomous machines.

This edge AI system is equipped with comprehensive I/O options, including CANBus for motion and direction control, LAN and optional PoE for camera input, and DI/O for sensor control.

The AIR-030 provides complete worldwide safety and EMC certifications, including CE/FCC, CB, UL, BSMI, CCC, IEC 61000-6-2 and IEC 61000-6-4, making it ideal for real-time video analytics and AI robotics applications in heavy industries.

The AIR-030 series supports multiple expansions to better accommodate wireless module and advanced edge AI applications, with 1 x M.2 B key 2280/3052 for NVME storage and 5G connectivity, 1 x M.2 2230 E key for Wi-Fi connectivity, and 1 x PCIe x16 slot for additional function cards support.

AI developers can also scale the AIR-030’s performance by adding a 10GbE card for high-speed data transmission or a GPU for high-performance graphics computing.

The AIR-030 series bundles with the Linux Ubuntu 20.04 OS environment and supports the NVIDIA JetPack 5.0 software development kit and above, as well as the Isaac platform, thus reducing the time and cost of production AI and robotics development.
