AIR-075
AIR-075
Advantech

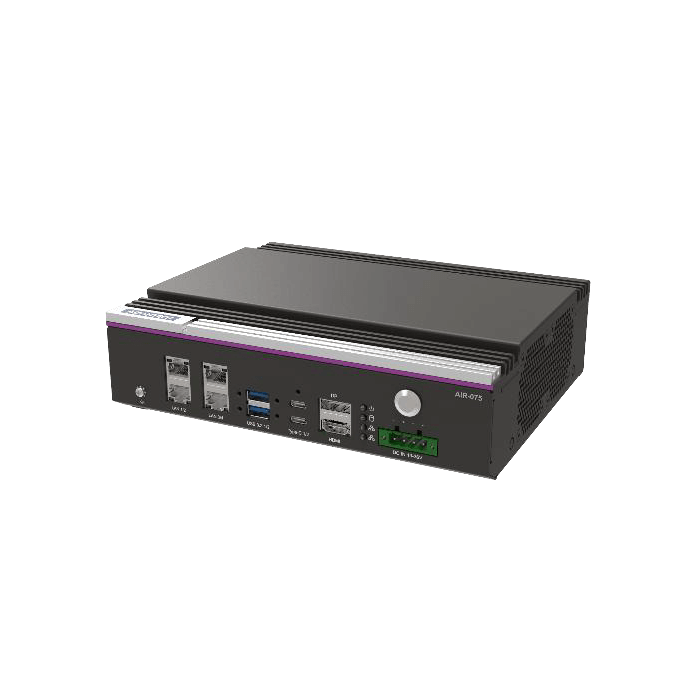

Edge AI Inference system powered by NVIDIA® Jetson Thor™ supporting 4 x MIPI-C cameras
Edge AI Inference system powered by NVIDIA® Jetson Thor™ supporting 4 x MIPI-C cameras.
Key Features:
- Accelerated by NVIDIA Jetson T5000™, up to 2560 CUDA Cores, 128GB LPDDR5X
- AI Performance: 2070 TFLOPS
- Super speed I/O: USB3.2 gen2, GMSL, 4 x 25G optical connectivity, 4K displays
- Rich Expansion: M.2 M-key NVMe SSD, B-key & E-key for Wireless connection
- Reliable operation: TPM2.0 onboard, ESD Level 4 protection
- 24V DC power input, Mini-ITX (170 x 170 mm)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| CPU |
14x Arm® Neoverse® V3AE CPU, Max. 2.6Ghz |
| GPU | Blackwell 2560 CUDA core and 96 Tensor Cores |
| NVIDIA® CPU/GPU | NVIDIA® Jetson Thor™ |
| Memory | 128GB LPDDR5X , 273 GB/s |
| Interface | RJ-45optional PoE support (IEEE 802.3 af) |
| COM | 2x RS-232/RS-422/RS-485 |
| USB |
1x USB 3.2 Gen1 Type C (USB 5 Gbps / DP1.4a) |
| TPM (Optional) | TPM2.0 (Optional) |
| Storage M.2 | 1 x M.2 2280 M Key(NVME) /1x M.2 2242 M Key(NVME) |
| Ethernet | 4x 10GbE Ethernet (10M/100M/1G/2.5G/10Gbps) |
| AI Performance | Up to 2070 FP4 TFLOPs(Sparse) / 1035 FP8 TFLOPs(Dense) |
| Power Type | ATX/AT mode, ATX default |
| Power Supply Voltage | 19~36V DC input |
| HDMI | 1x HDMI 2.1, Max 3840 x 2160 (4K) at 60 Hz |
| Audio | Line-out, Mic-in |
| CANBus | 2x DB9 |
| TDP | 75-130W |
| DP | 1x DP 1.4a, , 3840 x 2160(4K) at 60 Hz |
| DI/DO | 1x DB9(8 bit) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
