AMM-7199SM
AMM-7199SM
Marki Microwave
11-38 GHz GaAs Surface Mount LO Driver Amplifier

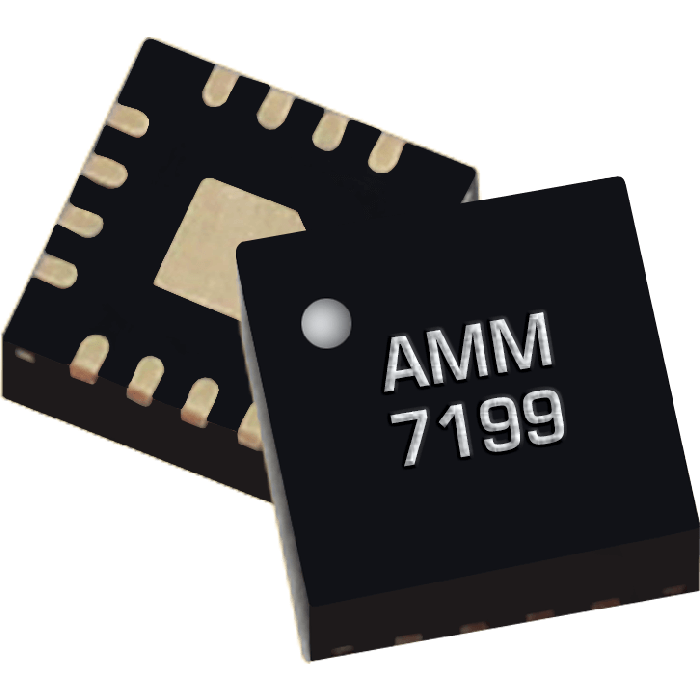

The AMM-7199SM is a surface-mount amplifier suitable for use as a single tone driver or general-purpose gain block. It can drive an L, H, or S diode mixer when supplied with 0-10dBm input power. This amplifier also has exceptionally low input and output reflections, and excellent gain flatness in-band. The AMM-7199SM is packaged in a compact 3mm QFN for surface mount integration onto printed circuit boards.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Minimum Frequency | 11 |
| Minimum Input Power for Saturation [dBm] | +3 |
| Maximum Input Power for Saturation [dBm] | +8 |
| Saturated Output Power [dBm] | +21 |
| Small Signal Gain [dB] | 21 |
| OIP3 [dBm] | +29 |
| Amplifier Type | LO Driver Surface Mounts |
| Package | Surface Mount |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
