AQA-2156
AQA-2156
Marki Microwave

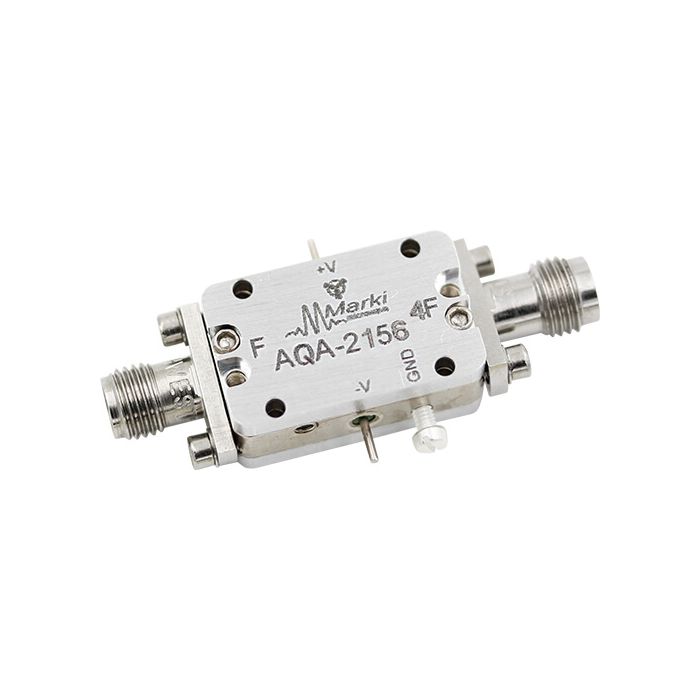

21-56 GHz Amplified 4F Multiplier
The AQA-2156 is an amplified frequency multiplier that quadruples the 5.25 – 14 GHz input frequency, producing an amplified 21 - 56 GHz quadrupled output frequency.
This multiplier is designed to provide +20 dBm 4F output power with +0 dBm input power and offers superior harmonic suppressions. It can provide sufficient LO drive for Marki S-, H-, and L- diode mixers.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Applications |
|
| Minimum Input (GHz) | 5.25 |
| Maximum Input (GHz) | 14 |
| Minimum Output (GHz) | 21 |
| Maximum Output (GHz) | 56 |
| Input Level (dBm) | -2 to +6 |
| Output Level (dBm) | +20 |
| Bias (V/mA) | +4V/-5V@300mA |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
