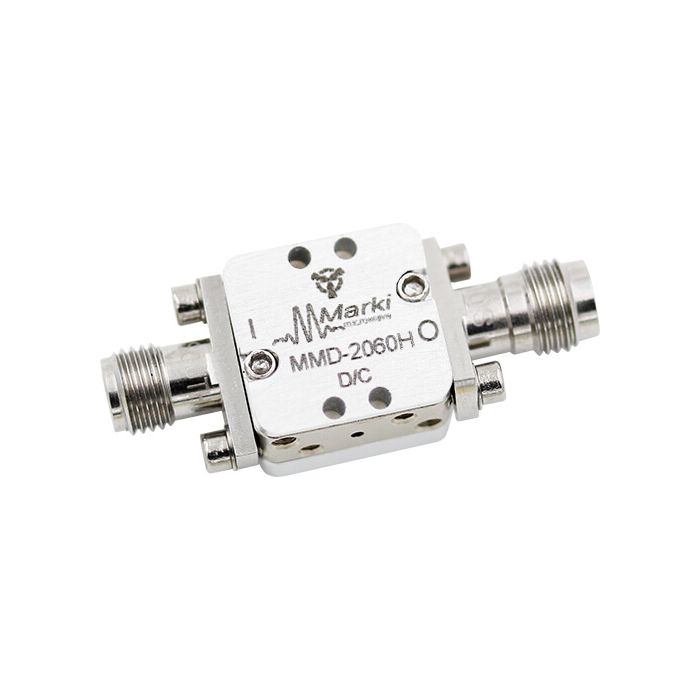

MMD-2060H
MMD-2060H
Marki Microwave
GaAs MMIC Millimeter Wave Doubler
The MMD-2060H is a MMIC millimeter wave doubler fabricated with GaAs Schottky diodes. This operates over a guaranteed 10 to 30 GHz input frequency range or a doubled output frequency range of 20 to 60 GHz. It features excellent conversion loss, superior isolations and harmonic suppressions across a broad bandwidth.
Both the wire bondable die and connectorised units are available.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Applications |
|
| Conversion Loss (dB) | 10.5 |
| Minimum Input (GHz) | 10 |
| Maximum Input (GHz) | 30 |
| Minimum Output (GHz) | 20 |
| Suppression F (dBc) | 38 |
| Suppression 3F (dBc) | 39.5 |
| Maximum Output (GHz) | 60 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
