AS-06, 30 MHz – 18 GHz
AS-06
Narda Safety Test Solutions
Antenna Set 30 MHz to 18 GHz

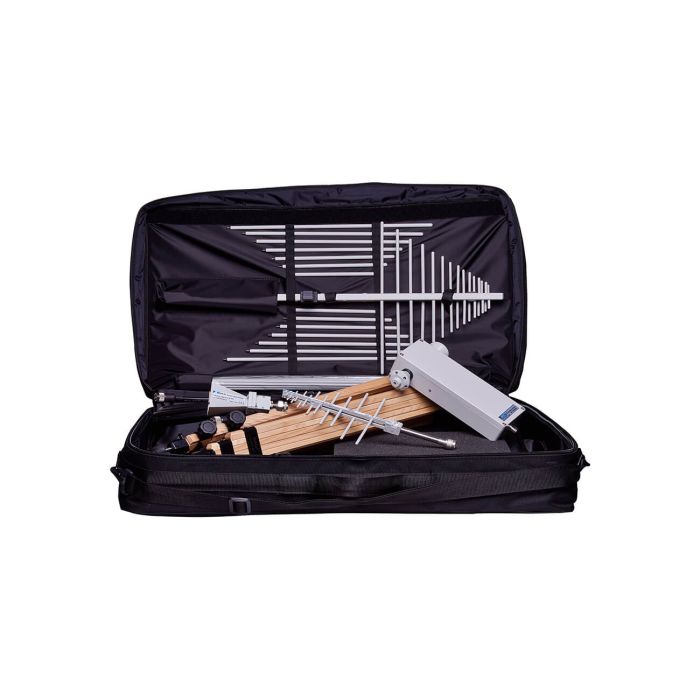

AS-06 is a Compact Broadband Antenna Set composed of a BC-01 Biconical Dipole, LP-02 Log Periodic Dipole Array, LP-03 Log Periodic Dipole Array and DR-01 Double Ridged Horn Antenna designed for radiated emissions and immunity testing that can be used in conjunction with any receiver or spectrum Analyser.
Its ideal companion is the EMI Receiver Unit 9060 or 9180, which can be easily mounted on the antenna mast.*
Key Features
- 30 MHz to 18 GHz frequency range
- Excellent antenna factor
- Tripod adapter for easy vertical-horizontal polarization change
- Individual calibration
- Robust, rustproof aluminium construction
- Lightweight
*The direct connection between antenna and PMM receiver eliminates additional sources of uncertainties due to coaxial cable attenuation and scattering. For further information please consult our brochure "Fully CISPR-Compliant Digital EMC/EMI receivers 10 Hz to 18 GHz".
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range |
BC-01: 30 to 200 MHz LP-02 : 200 MHz to 3 GHz LP-03: 800 MHz to 6 GHz DR-01: 6 to 18 GHz |
| Gain |
BC-01: -15 +2 dBi typical LP-02 : 6 dBi typical LP-03: 3,5 to 6,5 dBi typical DR-01: 9 to 16 dBi typical |
| Antenna Factor |
BC-01: 8 to 14 dB/m typical LP-02 : 13 to 36 dB/m typical LP-03: 23 to 42 dB/m typical DR-01: 36 to 41 dB/m typical |
| Max Input Power |
BC-01: 100 W LP-02 : 100 W up to 1 GHz 50 W up to 3 GHz LP-03: 75 W DR-01: 150 W |
| Construction | Aluminium |
| Impedance | 50 Ω nominal |
| Colour | RAL 7035 |
| Dimensions |
BC-01: 65 x 65 x 137 cm LP-02 : 70 x 10 x 86 cm LP-03: 32,5 x 8,1 x 18,7 cm DR-01: 55 x 44 x 137 mm |
| Weight |
BC-01: 1.8 kg LP-02 : 1.1 kg LP-03: 0.25 kg DR-01: 0.25 kg |
| Connector |
BC-01: N female LP-02 : N female LP-03/F: N female LP-03: N male DR-01: N female |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
