AT30A-005010J-2-NF
AT30A-005010J-2-NF
Aaren Technology

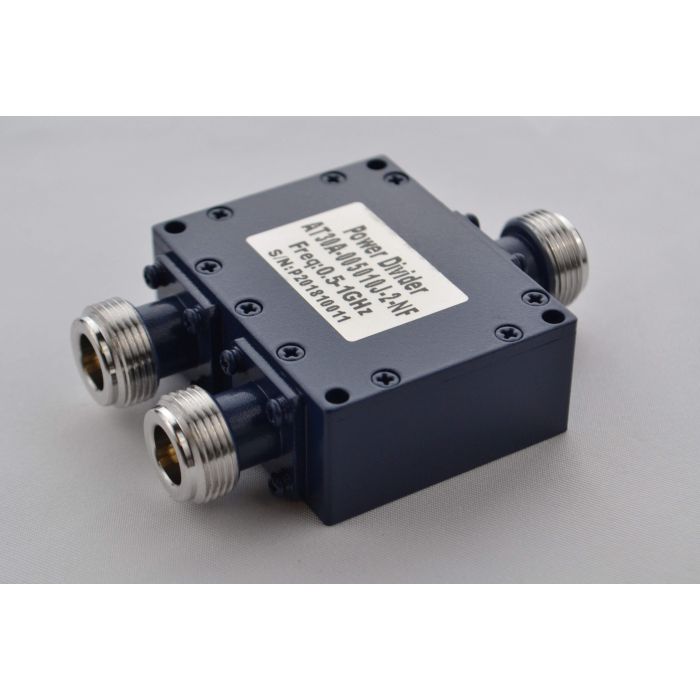

Power Divider 2 Way 0.5 to 1.0GHz N Female 30W
Aaren Technology Power Dividers
2 Way 0.5 to 1.0GHz N Female 30Watt. They are designed with excellent characteristics over the full frequency range.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Typical lead time: 2-5 weeks
Buy Online
| Attribute | Value |
|---|---|
| Weight | 0.156 |
| Frequency | 0.5 ~ 1.0GHz |
| VSWR Max | ≤1.20:1 |
| Material Finishing | Black Paint |
| Insertion Loss | ≤0.4dB |
| Isolation | ≥22dB |
| Amplitude Balance | ± 0.2dB |
| Phase Balance | ± 2° |
| Operating Temperature | -55 ~ +85°C |
| Average Power | 30W |
| Power Handling | 30W |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
