AT30A-120180J-2-NF
AT30A-120180J-2-NF
Aaren Technology

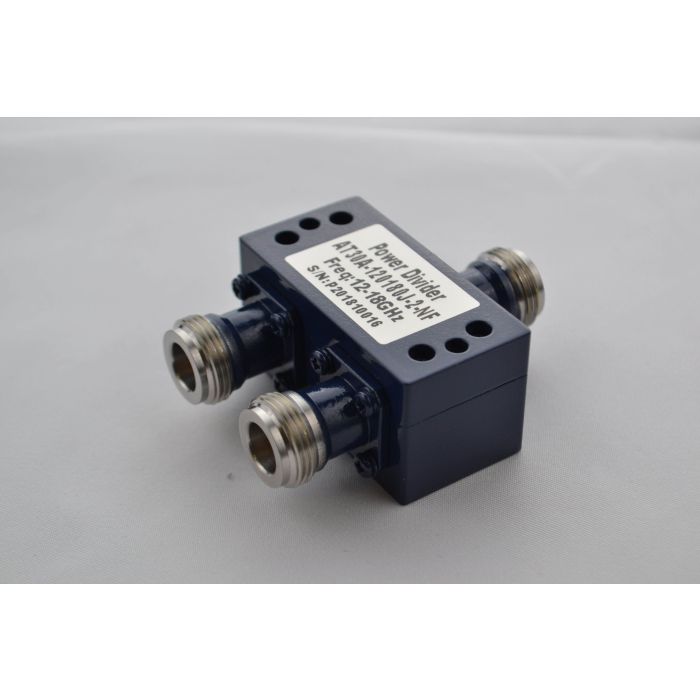

Power Divider 2 Way 12.0 to 18.0GHz N Female 30W
Aaren Technology Power Dividers
2 Way 12.0 to 18.0GHz N Female 30Watt. They are designed with excellent characteristics over the full frequency range.
Price breaks are available for higher quantities - please ask a member of our team for details on 0330 313 3220, or email [email protected].
Typical lead time: 2-5 weeks
Buy Online
| Attribute | Value |
|---|---|
| Weight | 0.165 |
| Frequency | 12.0 ~ 18.0GHz |
| VSWR Max | ≤1.60:1 |
| Insertion Loss | ≤1.0dB |
| Isolation | ≥18dB |
| Amplitude Balance | ≤±0.3dB |
| Phase Balance | ≤±3° |
| Operating Temperature | -55 ~ +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
